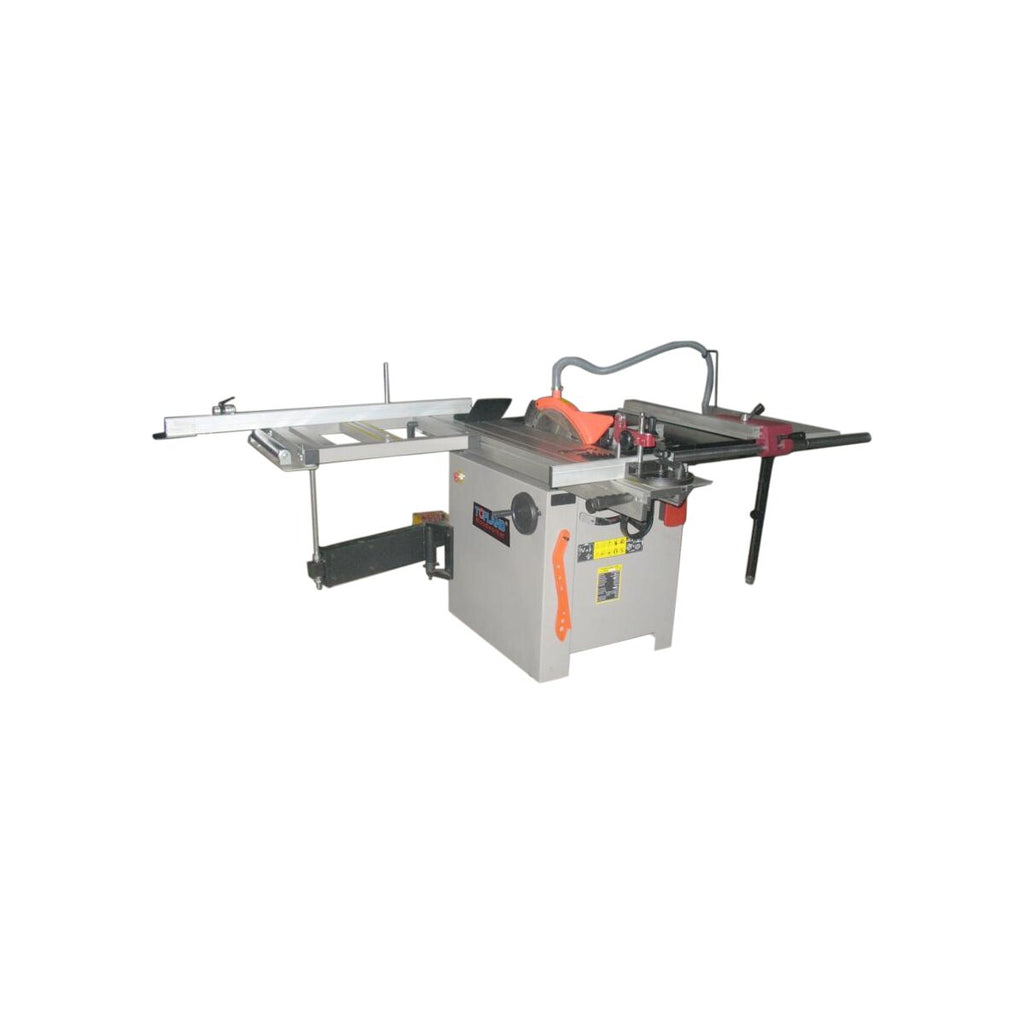

TOPLINE Aeroplane Saw with 2000mm Sliding Table 230V 50Hz | Model: PS315/2000

TOPLINE Aeroplane Saw with 2000mm Sliding Table 230V 50Hz | Model: PS315/2000

A heavy-duty aeroplane (sliding table panel) saw built for precision panel and board cutting in workshop and production environments. Fitted with a 2000mm sliding table for handling long workpieces with accuracy and control.

Features

• Knee-operated emergency switch
• Easy-adjustable fence locking lever
• Two-piece scoring blade system
• Adjustable cutting mechanism

Specifications

• Model: PS315/2000
• Motor: 3.0 kW, 230V, 50Hz

• Main blade size: Ø315 × 30 × 3 mm
• Alternative main blade: Ø254 × 30 × 3 mm
• Main blade speed: 4,500 rpm
• Scoring blade size: Ø100 × 20 mm
• Scoring blade speed: 8,500 rpm
• Blade tilting range: 90°–45°
• Maximum cutting height with Ø315 mm blade:
  • 100 mm at 90°
  • 80 mm at 45°
• Maximum cutting height with Ø254 mm blade:
  • 75 mm at 90°
  • 60 mm at 45°
• Maximum distance from blade to rip fence: 1,220 mm
• Sliding table length: 2,000 mm
• Sliding table size: 2,000 × 680 × 580 mm
• Main table size: 380 × 800 mm
• Extension table sizes: 440 × 800 mm and 440 × 500 mm
• Rear table size: 310 × 500 mm
• Packing sizes:
  • 930 × 765 × 1,040 mm
  • 2,080 × 320 × 245 mm
• Net/Gross weight:
  • Main unit: 228/256 kg
  • Sliding table: 60/70 kg
