Description

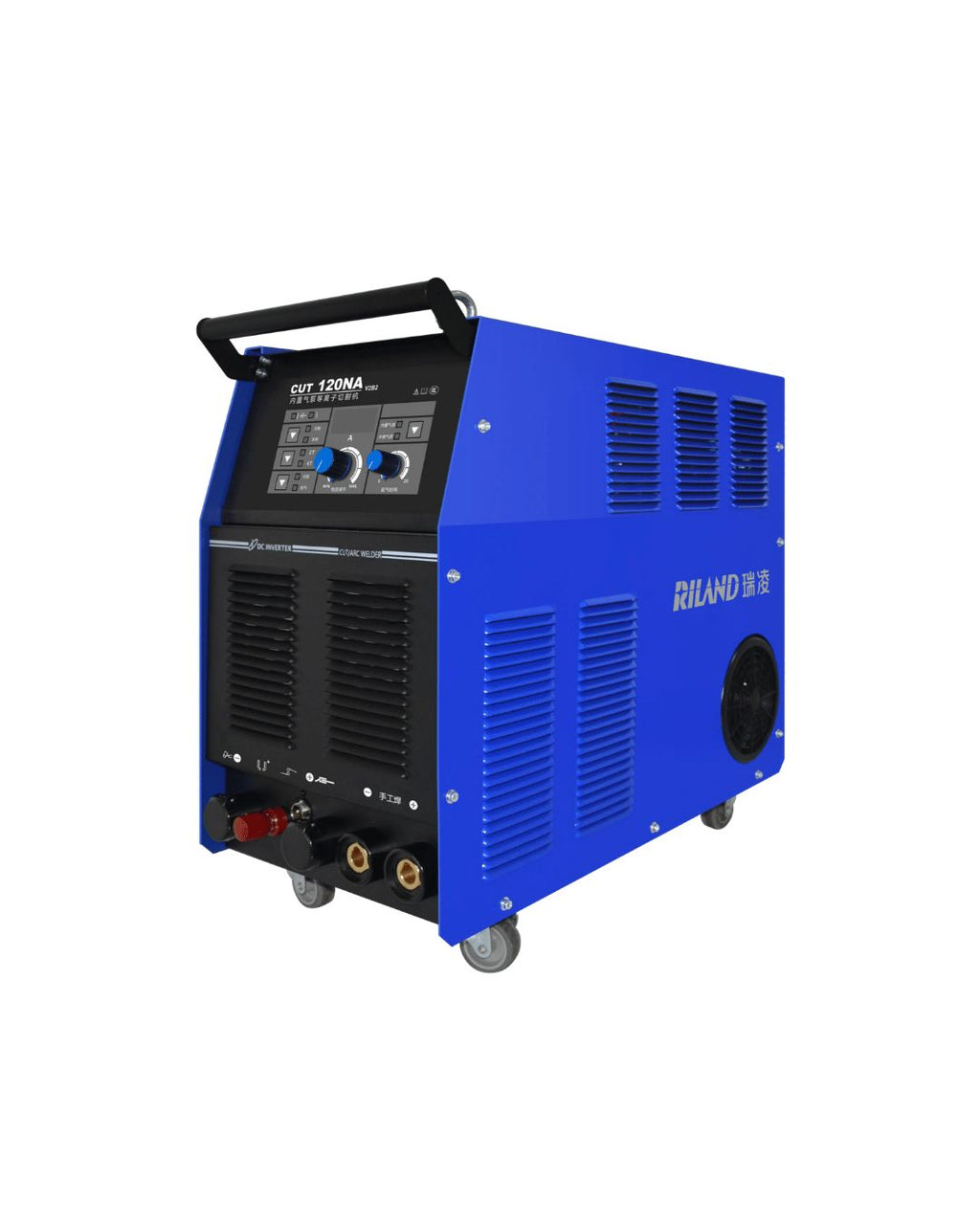

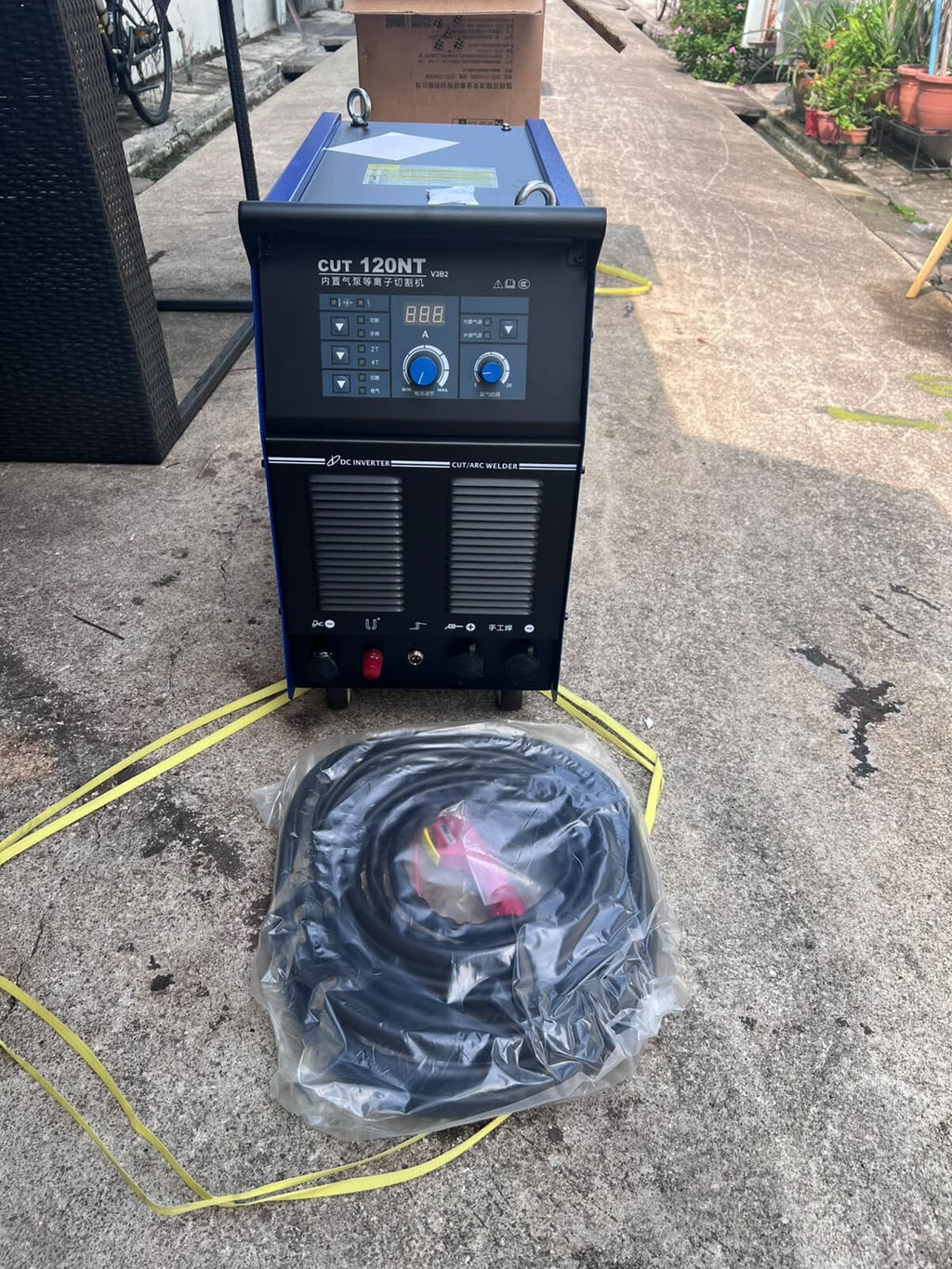

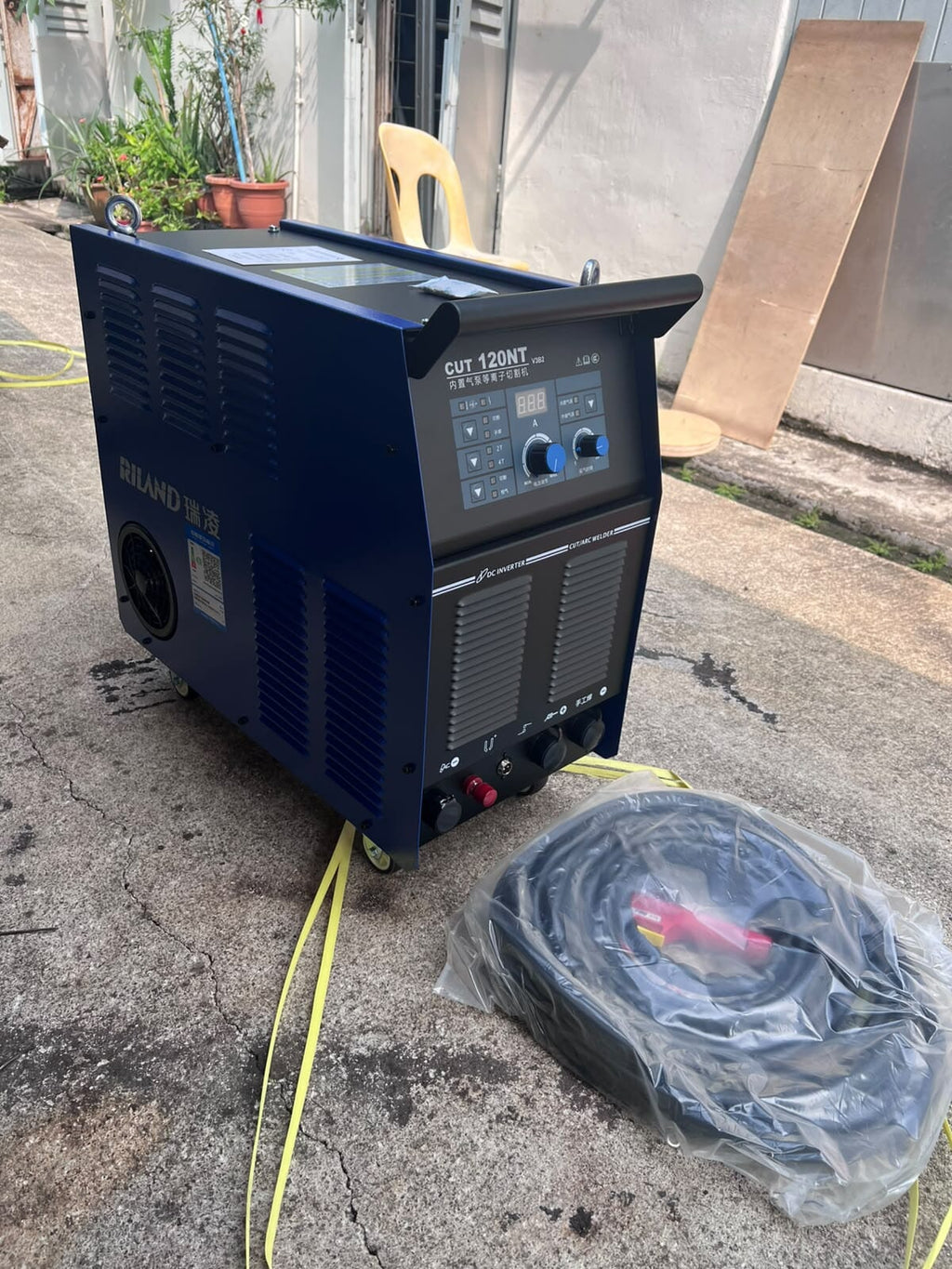

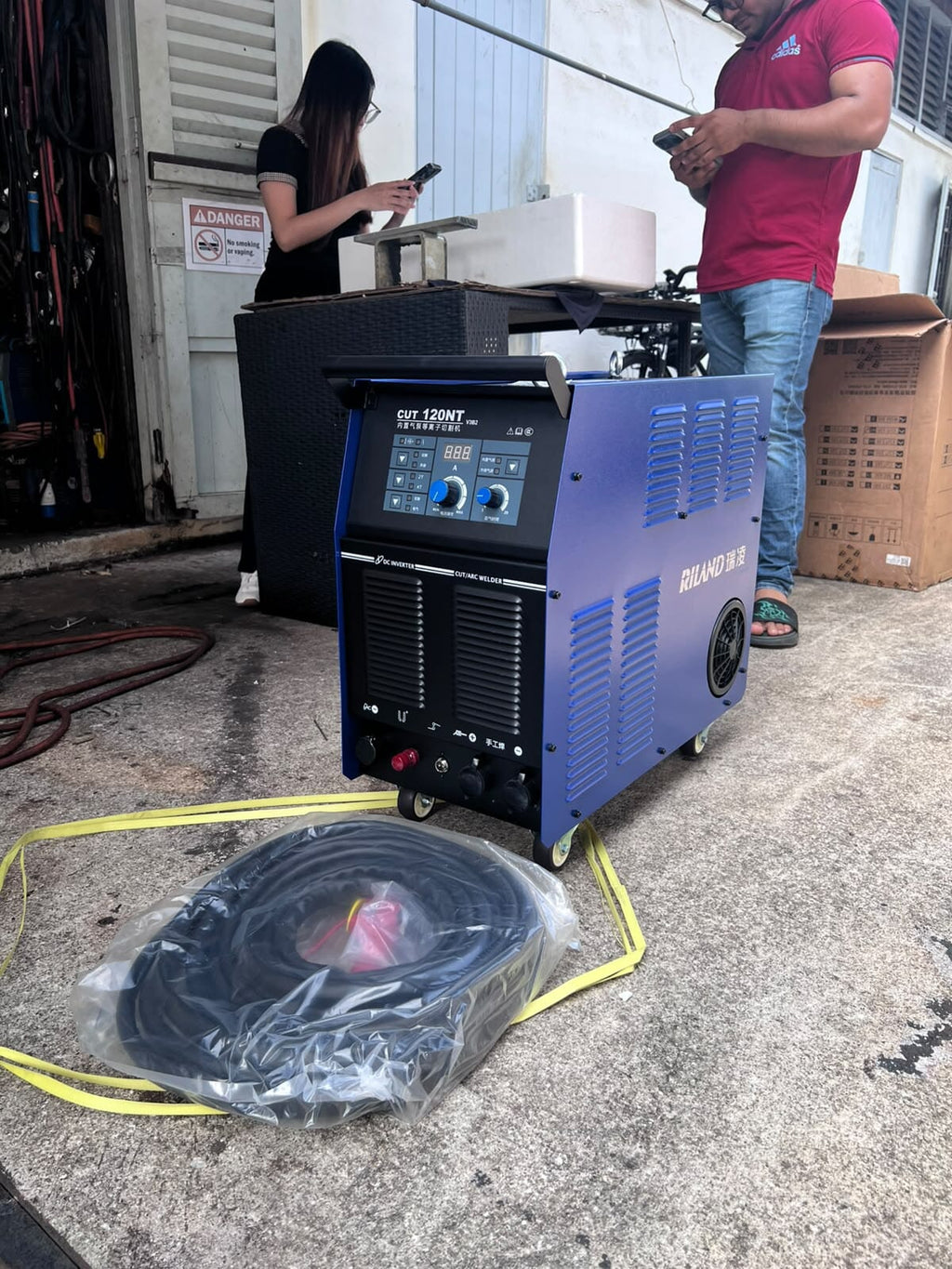

Riland Welding Machine CUT120NT Three Phase C/W Air Compressor, 10m P80 & 2m Earth Cable | Model: W-CUT120NT-R
Features:
- Theadvanced IGBTinverter technology.
- Industrial assistor for cutting middle thickness steel with stable performance.

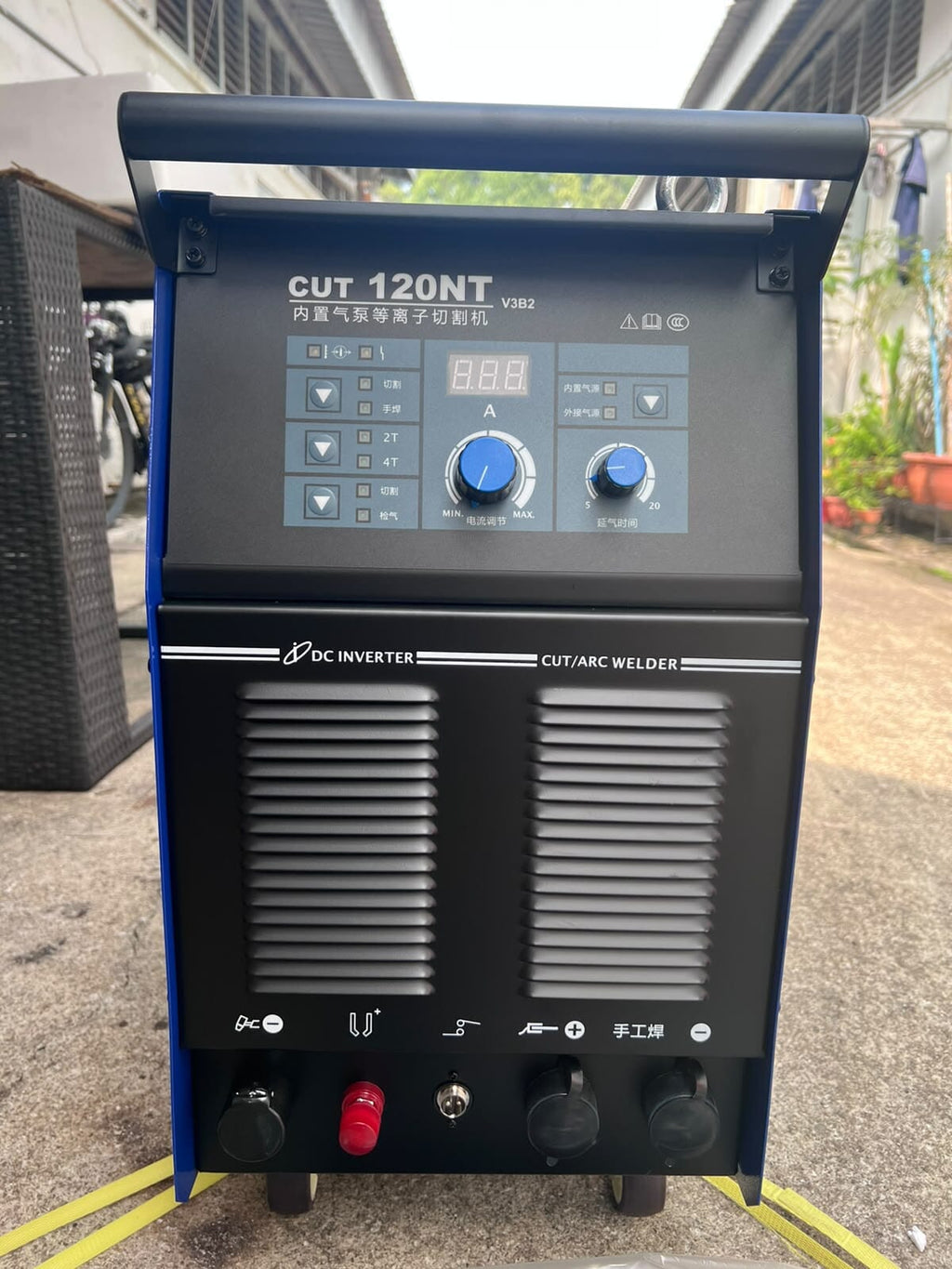

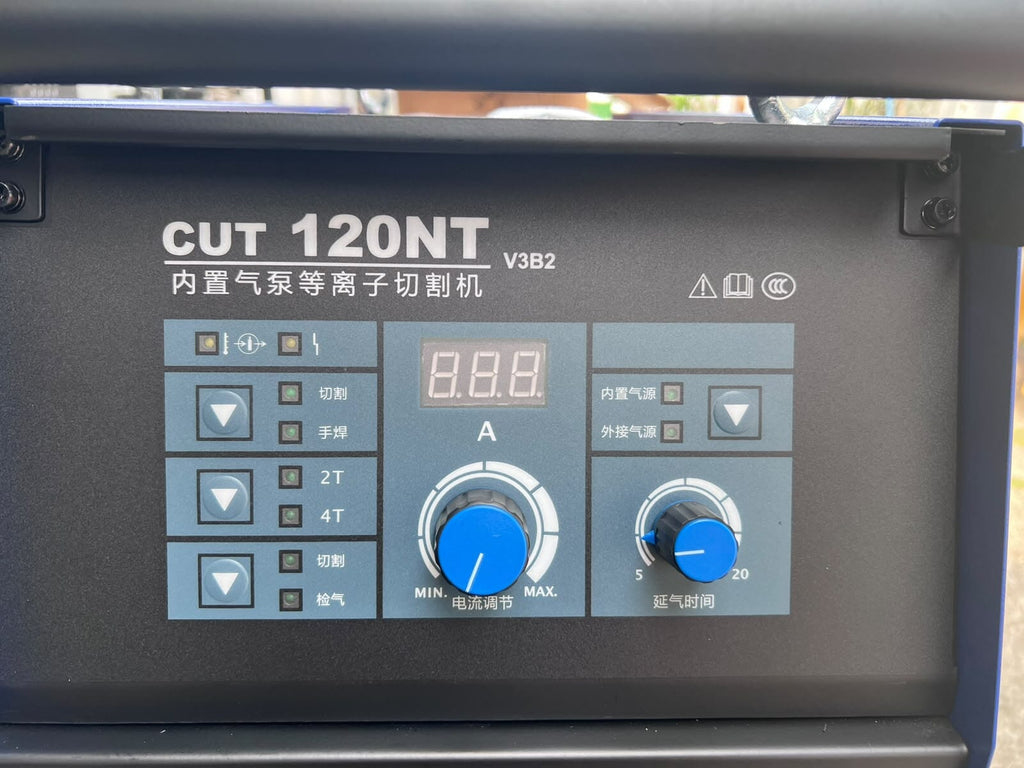

- Digital display of cutting current on the panel.
- Current and post-gas time adjustable, extend the life of consumable parts.

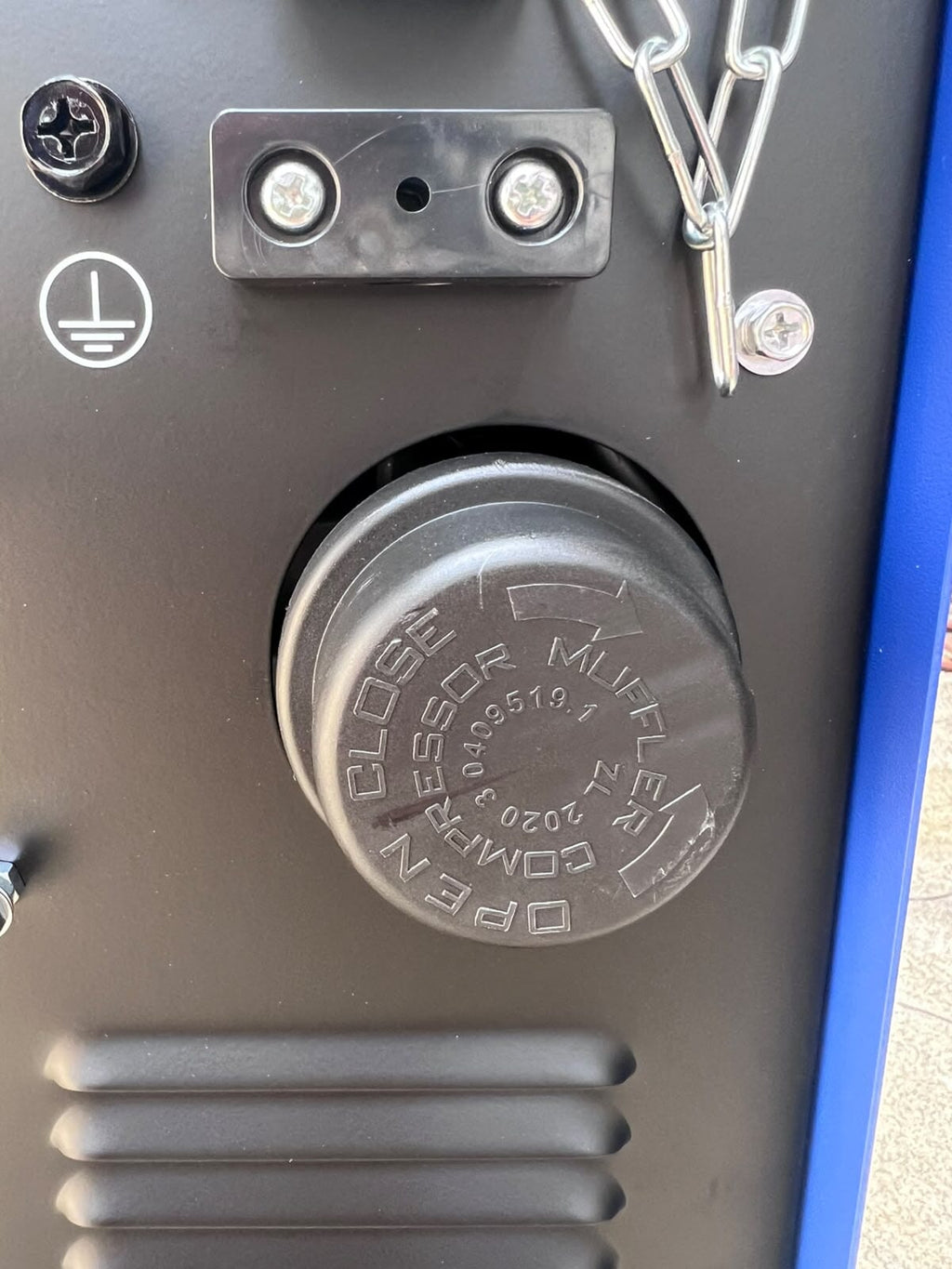

- Built-in air-compressor easy to cut and move outdoors
- 2T/4Tfunction, abundant modes to service various cutting demands
- Can selectable built-in or independent air-compressor for gas supply
- Gas check; make sure the air flow fluently before working
- Delicate angle bead, more protection and more beautiful shape.
- Intelligent protection: over-heating, over-current, over-voltage protection, convoy for the welder to keep power.

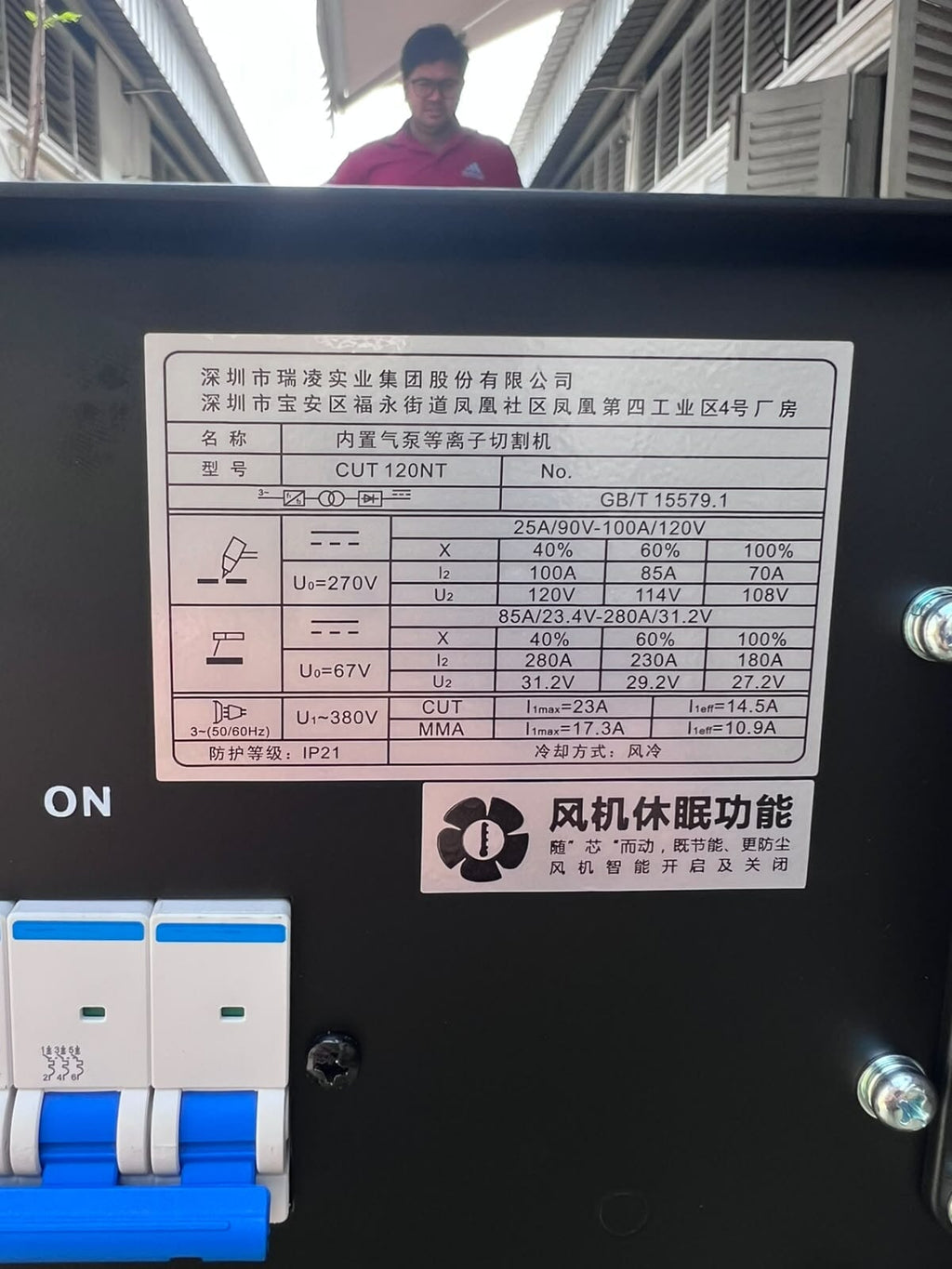

Specifications:
| Model | W-CUT120NT-R |
| Input Voltage (V) | 3 phase AC380V ±15% |
| Frequency (Hz) | 50/60 |
| Rated Input Current (A) | Cut: 25.3 | MMA: 18.5 |
| Rated Input Power (KVA) | 16.7 |
| No-load Voltage (V) | Cut: 270 | MMA: 67 |
| Duty Cycle (40°C) | 40% |
| Output Current Range (A) | Cut: 25-110 | MMA: 100-300 |
| Rated Output Voltage (V) | Cut: 90-124 | MMA: 24-32 |
| Gas Delay Time (s) | 5~20 |
| Efficiency | 85% |
| Power Factor | 0.9 |
| EMC | A |
| Insulation Grade | F |
| Protection Class | IP21 |
| Striking Way | HF |
| Air Pressure (Kgf/cm²) | 4-5.5 |
| Limit Cut Thickness (mm) | 45 |
| Recommended Thickness (mm) | 1-30 |
| Weight (kg) | 55.5 |
| Dimension (L×W×H mm) | 670×320×640 |
Application specification
Recommended for 1-25mm thickness metal, limited for 40mm thickness metal, suitable for steel erection, pipe, fabrication, shipbuilding, foundries, mild steel, stainless steel, alloyed steel, etc.

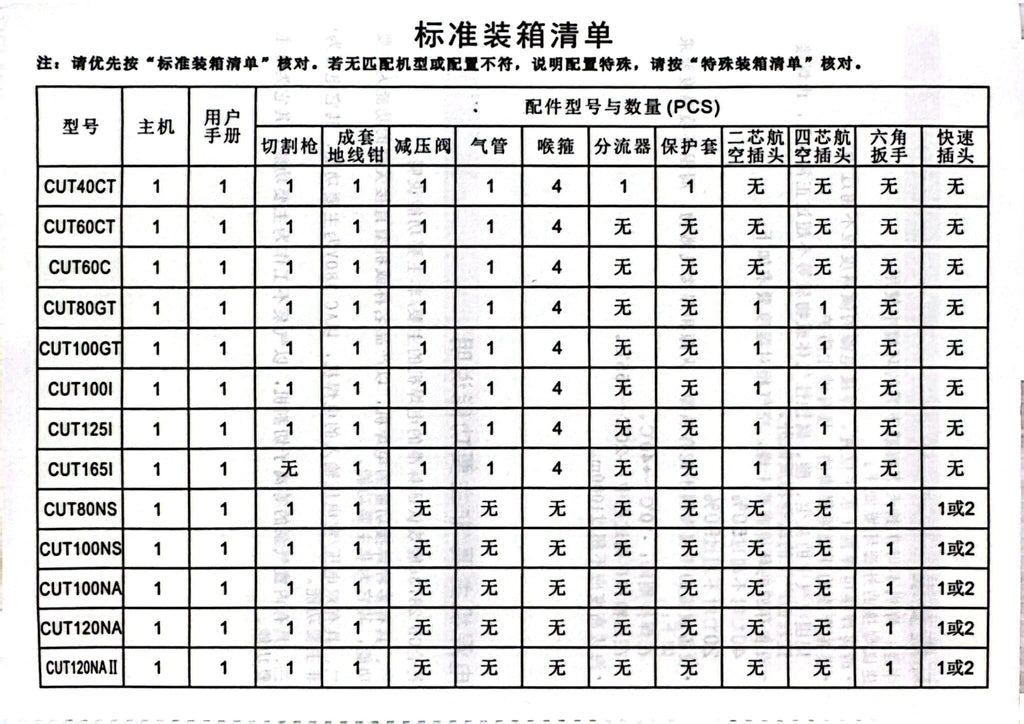

Accessories Included:
- 1pc Cutting torch, P80, 10m, 8mm²
- 1pc Earth clamp 300A, 10mm², 2m
- 1pc KDP50A quick plug
- 1pc Wrench
