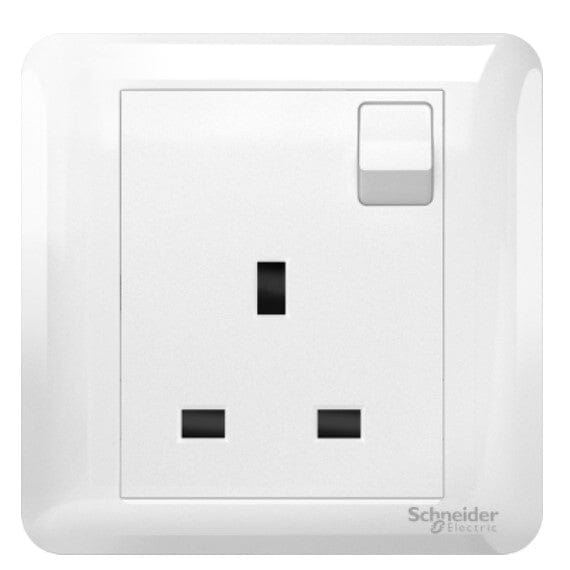

Schneider 13A Single Gang Switched Socket | Model : A3G15-WE-G2

SchneiderSKU: A3G15-WE-G2

Price:
Sale price$5.05

Tax included Shipping calculated at checkout

Description

Schneider 13A Single Gang Switched Socket | Model : A3G15-WE-G2

Specifications :

Range Affle Plus
Product or component type Switched socket
device presentation Mechanism
Outlet poles configuration 3P with shutter
Outlet standard description With earthing contact
Outlet standard deviation BS 1363
Colour tint White
number of terminals 3
Complementary
Socket number 1
Device mounting Flush
Fixing mode Screw
Surface finish Glossy
Surface treatment Untreated mechanism cover
Rated current 13 A socket-outlet
[Ue] rated operational voltage 250 V AC 50/60 Hz
Service life in cycles 15000 cycles
Electrical durability 15000 cycles
Connections - terminals Screw terminal
Screwdriver shape Philips No 2
Number of cables 2
Clamping connection capacity 2.5...4 mm² for rigid cable(s)
2.5...4 mm² for stranded cable(s)
2.5...4 mm² for flexible cable(s)
Wire stripping length 14 mm
Material PC (polycarbonate)
Brass
Height 86 mm
Width 86 mm
Depth 29.7 mm
Embedding depth 18.8 mm
Net weight 0.064 kg
Environment
Ambient air temperature for storage -5…45 °C
Ambient air temperature for operation -5…45 °C
Standards BS 1363
MS 589
Product certifications SIRIM
IP degree of protection IP20
