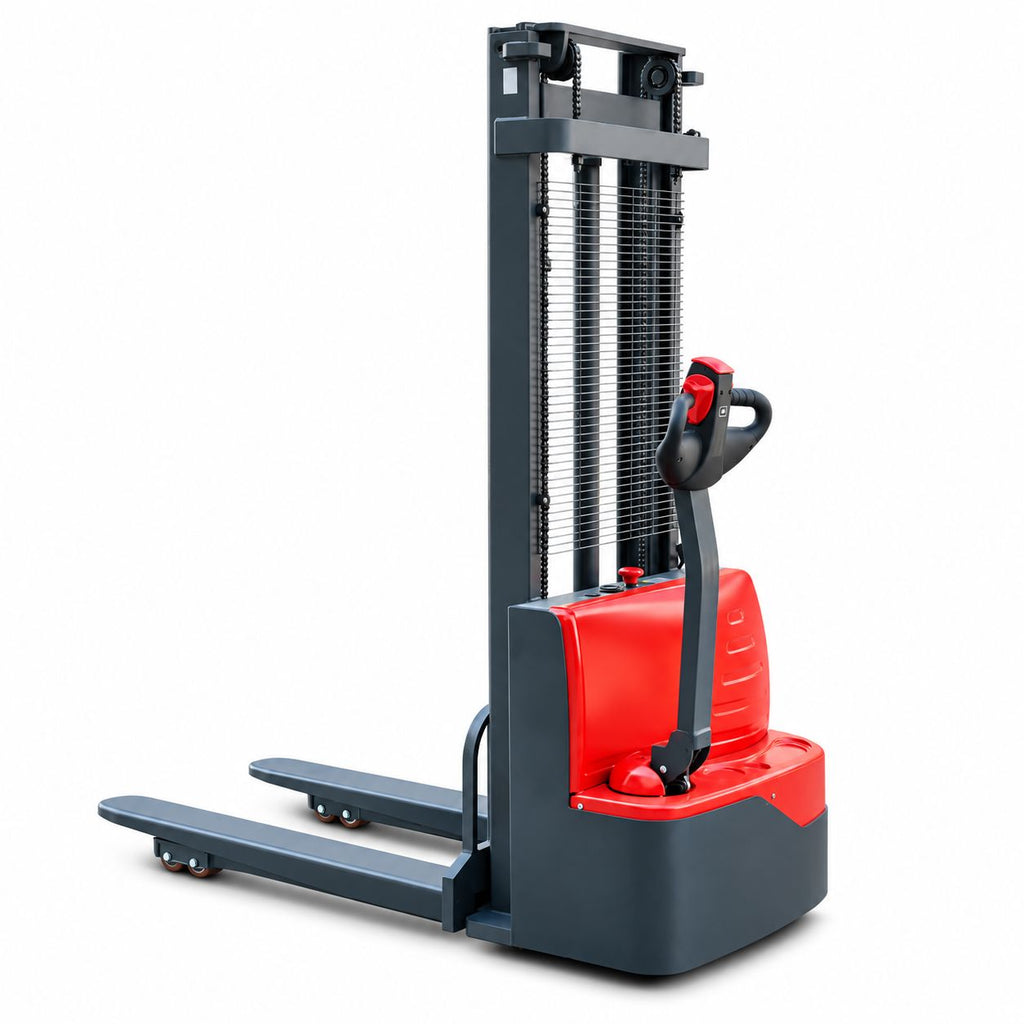

Aiko Fully Electric Stacker 1.5 Ton 3m PU Wheel (For Open Pallet Only) | Model: PT-AIKO1530E-A

AikoSKU: PT-AIKO1530E-A

Price:
Sale price$3,376.28

Tax included Shipping calculated at checkout

Description

Aiko Fully Electric Stacker 1.5 Ton 3m PU Wheel  (For Open Pallet Only) | Model: PT-AIKO1530E-A

Features:

  • Powerful performance with strong climbing capability.
  • High-strength forks and a reinforced C-section and H-section steel mast for durability and resistance to deformation.
  • Automatic travel-speed reduction when lifting above 1.5 m for enhanced operational safety.
  • Lift-height limiter helps extend motor and battery service life.
  • Maintenance-free battery with convenient charging.
  • Creep-speed control and upright-handle travel for precise manoeuvring in narrow aisles.
  • Wire mesh mast guard for operator protection.
  • Emergency stop switch instantly cuts power during emergencies.

Specifications:

  • Model: PT-AIKO1530E-A
  • Operating Type: Walk-behind
  • Load Capacity: 1,500 kg
  • Load Centre: 600 mm
  • Wheelbase: 1,166 mm
  • Wheel Type: PU
  • Wheel Quantity (Driving / Balance / Bearing): 1 / 1 / 4
  • Driving Wheel Size: Ø210 × 70 mm
  • Balance Wheel Size: Ø115 × 55 mm
  • Bearing Wheel Size: Ø80 × 70 mm
  • Minimum Lowered Fork Height: 90 mm
  • Fork Size (Length × Width × Thickness): 1,150 × 160 × 70 mm
  • Overall Length: 1,755 mm
  • Overall Width: 790 mm
  • Minimum Turning Radius: 1,365 mm
  • Minimum Aisle Width for 800 × 1,200 mm Pallets: 1,930 mm
  • Minimum Aisle Width for 1,000 × 1,200 mm Pallets: 1,970 mm
  • Travel Speed (Loaded / Unloaded): 4 / 4 km/h
  • Lifting Speed (Loaded / Unloaded): 100 / 160 mm/s
  • Lowering Speed (Loaded / Unloaded): 100 / 100 mm/s
  • Gradeability (Loaded / Unloaded): 5% / 7%
  • Drive Motor / Lift Motor: 0.75 kW DC / 2.2 kW DC
  • Battery Voltage / Capacity: 24 V / 85 Ah
  • Charger Specification: 24 V / 10 A
  • Battery Weight: 50 kg
  • Service Weight Including Battery: 560 kg
  • Noise Level: 70 dB(A)
  • Steering Type: Mechanical steering
