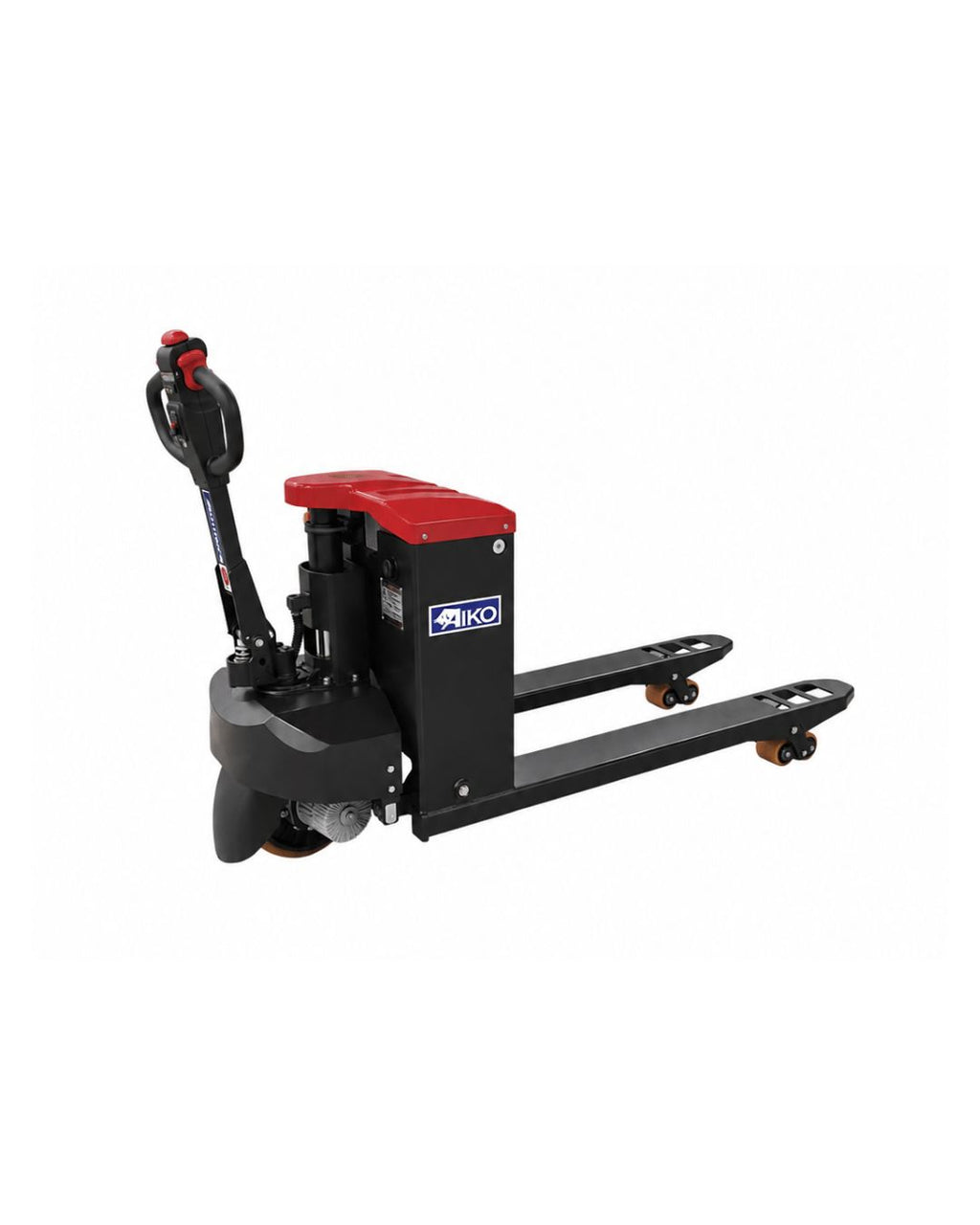

Aiko Fully Electric Construction Pallet Truck 5t 685*1220mm - Off Road | Model: PT-HB-TYS50

Specifications:

Category Parameter Value
Features Model TYS50
Power form Electrical
Operation Pedestrian
Load 5000kg
Load center distance 600mm
Wheelbase 1390/1440mm
Weight Self weight with battery 384kg
Wheel Wheel Type Front rubber/PU, rear PU/nylon
Driving wheel size (diameter×width) Φ350×100mm
Load-bearing wheel size (diameter×width) Φ85×80mm
Number of wheels Drive side / Load side 1/4
Basic size Maximum height of fork 205mm
Lifting stroke 115mm
Minimum height of fork (±2mm) 90mm
Fork outer distance 550/685mm
Fork inner distance 210/345mm
Length of forks 1150/1220mm
Width of forks 170mm
Thickness of forks 62mm
Overall width 685mm
Overall height without handle 845mm
Overall length 1920mm
Overall height with handle 1390mm
Turning Radius 1690mm
Capability Travel speed (laden/unladen) 4/4.5km/h
Lifting speed (laden/unladen) 8/11.8mm/s
Maximum climbing grade (laden/unladen) 8/16%
Brake type Electromagnetic brake
Motor/Battery Rated power of driving motor 1.5kW
Rated power of lifting motor 1.2kW
Battery lead-acid battery 72/32V/Ah
Battery weight 54kg
