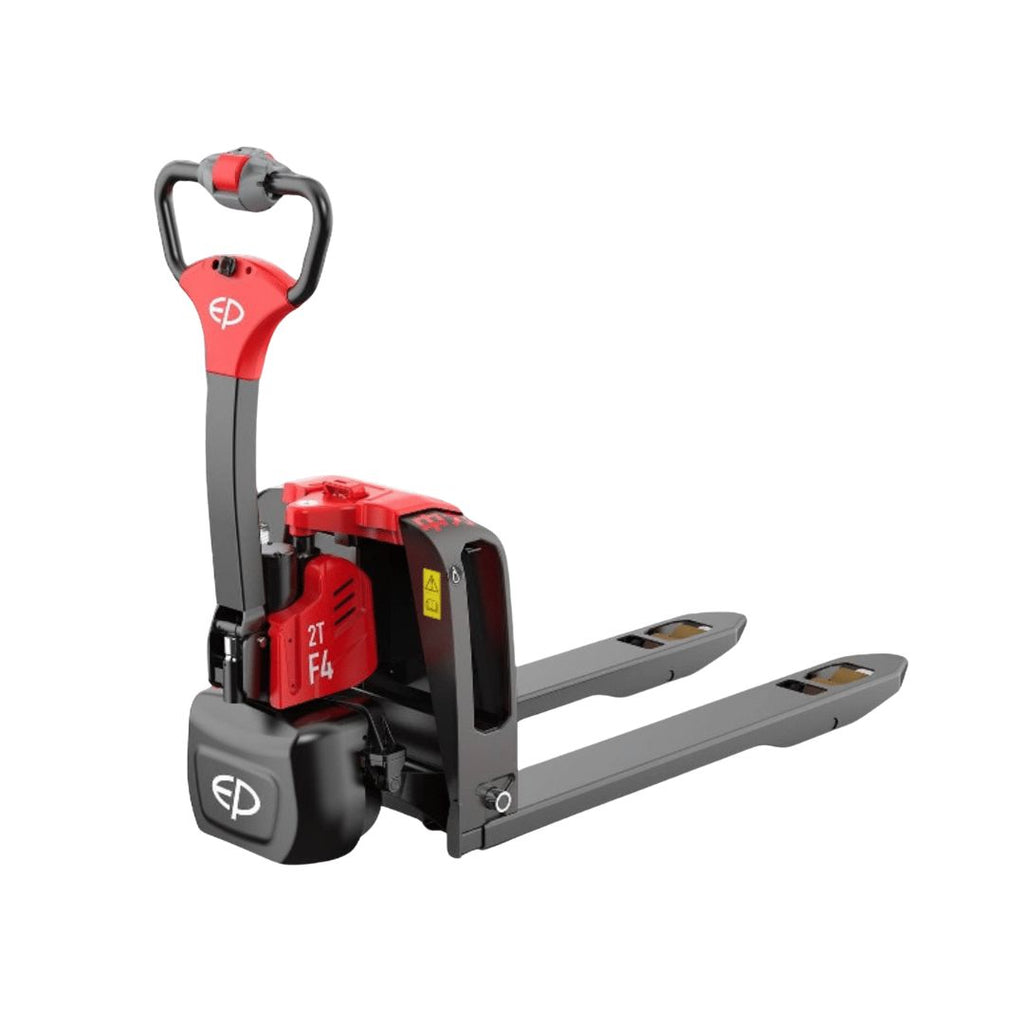

Aiko Electric Pallet Truck 2 Ton With 1 Battery (560mm X 1150mm) F4 | Model: PT-AIKO-F4202-N
Specifications:
Model | PT-AIKO-F4202-N |
Drive Type | Electric |
Operation Mode | Walkie |
Load Capacity | 2000 kg |
Load Center Distance | 600 mm |
Load Distance (center of drive axle to fork face) | 950 mm |
Wheelbase | 1180 mm |
Service Weight | 140 kg |
Axle Load, Loaded (Front/Rear) | 620 / 1520 kg |
Axle Load, Unloaded (Front/Rear) | 100 / 40 kg |
Tyre Type (Drive/Load Wheels) | Polyurethane |
Front Wheel (Diameter × Width) | 210 × 70 mm |
Rear Wheel (Diameter × Width) | 80 × 60 mm |
Balance Wheel Size | 74 × 30 mm |
Number of Wheels (Drive/Balance/Load) | 1 × 2 / 4 mm |
Track Width (Load Wheels) | 410 (535) mm |
Lift Height | 105 mm |
Tiller Arm Height (Min/Max, in drive position) | 750 / 1190 mm |
Lowered Fork Height | 82 mm |
Overall Length (with tow hook) | 1550 mm |
Length to Fork Face | 400 mm |
Overall Width | 590 (695) mm |
Fork Dimensions (Thickness × Width × Length) | 50 × 150 × 1150 mm |
Fork Overall Width | 560 (685) mm |
Ground Clearance (at center of wheelbase) | 30 mm |
Aisle Width (Pallet 1000 × 1200, crosswise) | 2160 mm |
Aisle Width (Pallet 800 × 1200, lengthwise) | 2025 mm |
Turning Radius | 1360 mm |
Travel Speed (Loaded/Unloaded) | 4.5 / 5 km/h |
Lifting Speed (Loaded/Unloaded) | 0.016 / 0.020 m/s |
Lowering Speed (Loaded/Unloaded) | 0.058 / 0.046 m/s |
Maximum Gradeability (Loaded/Unloaded) | 8 / 16 % |
Service Brake | Electromagnetic |
Drive Motor Power (S2, 60 min) | 0.9 kW |
Lift Motor Power (S3, 15%) | 0.7 kW |
Battery Voltage / Capacity | 48 V / 10 Ah |
Battery Weight | 5 kg |
Energy Consumption (DIN EN16796) | 0.18 kWh/h |
Throughput (VDI 2198) | 88 t/h |
Efficiency (VDI 2198) | 473.12 t/kWh |
Drive Unit Type | DC Brushless |
Steering Type | Mechanical |
Noise Level (S) | 74 dB(A) |
