Aiko 8.5kW Super Silent Diesel Generator 230V/400V 50Hz | Model : RDE13SS3


Sale price$0.00

Tax included Shipping calculated at checkout


Aiko 8.5kW Super Silent Diesel Generator 230V/400V 50Hz | Model : RDE13SS3

Description :

Robust and durable

  • Compact, robust and flexible structures ensure long service life and quiet operation.
  • Thicker painting treatments stand the wear and tear in extreme environmental conditions.

Cleaner, safer and quieter

  • Waterproof canopy ensures protection against ingress of dust and water.
  • All DEHRAY generators meet or exceed relevant standards for noise and emission regulations.

Design for easy transportation

  • Lifting hook and forklift access are standard on all units. Compact structure minimize transportation costs.

Easy to use

  • Control panel is simple and easy to operate.
  • Built-in monitoring system ensures safe operation and basic parameter display

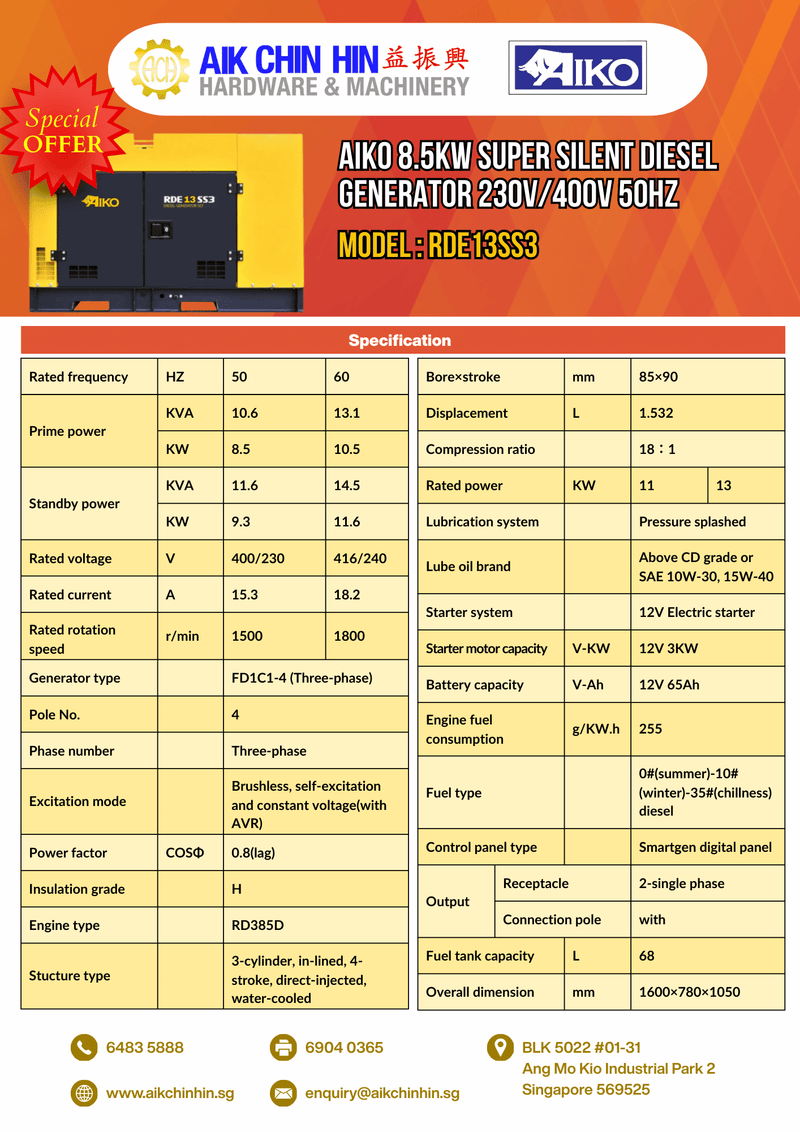

Specification :

Rated frequency HZ 50 60
Prime power KVA 10.6 13.1
KW 8.5 10.5
Standby power KVA 11.6 14.5
KW 9.3 11.6
Rated voltage V 400/230 416/240
Rated current A 15.3 18.2
Rated rotation speed r/min 1500 1800
Generator type   FD1C1-4 (Three-phase)
Pole No.   4
Phase number   Three-phase
Excitation mode   Brushless, self-excitation and constant voltage(with AVR)
Power factor COSΦ 0.8(lag)
Insulation grade   H
Engine type   RD385D
Stucture type   3-cylinder, in-lined, 4-stroke, direct-injected, water-cooled
Bore×stroke mm 85×90
Displacement L 1.532
Compression ratio   18∶1
Rated power KW 11 13
Lubrication system   Pressure splashed
Lube oil brand   Above CD grade or SAE 10W-30, 15W-40
Starter system   12V  Electric starter
Starter motor capacity V-KW 12V 3KW
Battery capacity V-Ah 12V 65Ah
Engine fuel consumption g/KW.h 255
Fuel type   0#(summer)-10#(winter)-35#(chillness) diesel
Control panel type   Smartgen digital panel
Output Receptacle 2-single phase
Connection pole   with
Fuel tank capacity L 68
Overall dimension mm 1600×780×1050
