Zupper Single Action Hollow Plunger Hydraulic Cylinder 60T 50MM/ 100MM | Model: ZUPPER-RCH

ZupperSKU: ZUPPER-RCH-6050

Size: 50MM
Price:
Sale price$599.50

Tax included Shipping calculated at checkout

Description

Zupper Single Action Hollow Plunger Hydraulic Cylinder 60T 50MM/ 100MM | Model: ZUPPER-RCH

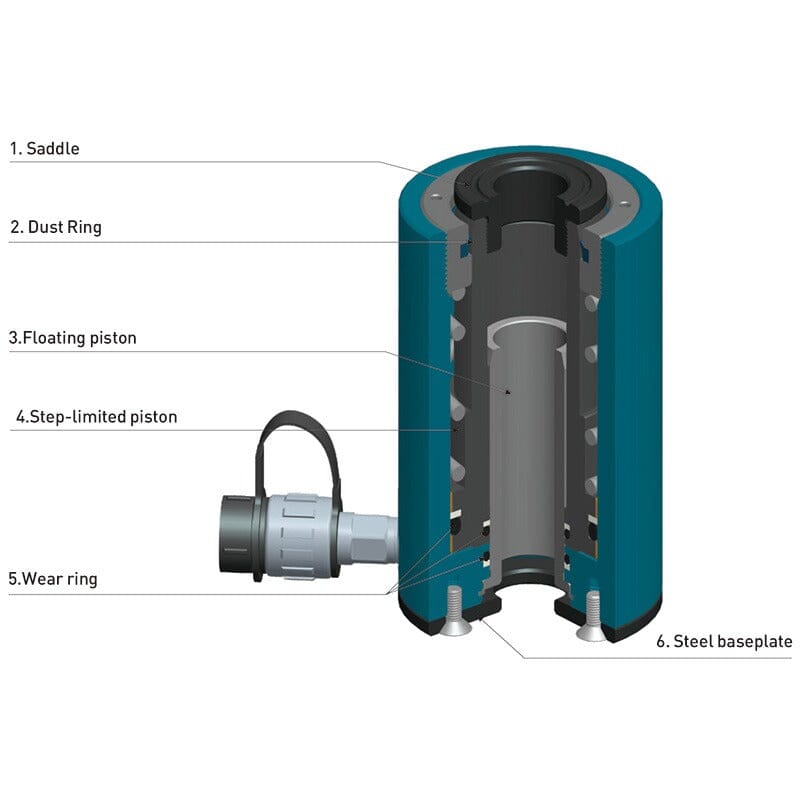

Features:

● Steel base plate and saddle for protection the hollow piston and cylinder damage and increasing abrasion performance
● Dust ring stop the dust into cylinder during extension
● Floating type plunger prevents the block caused by slight unbalance loading of piston
● Step-limited piston prevents over-travel and is capable of stopping the spring compressed completely
● Wear ring prevent metal to metal contact, increasing cylinder life and resistance to be scratched
● High-efficient seal extends cylinder life
● Handles included on all models

Specifications:

Model RCH-6050 RCH-60100
Output (t) 60 60
Stroke (mm) 50 100
Effactive area (cm²) 98.9 98.9
Oil Capacity (L) 0.495 0.989
Height of Product (mm) 210 282
Extended Height (mm) 260 382
Outside dia (Φmm) 165 165
Bore dia (Φmm) 135 135
Principal axis Dia (Φmm) 100 100
Outer Dia of Piston (mm) 54 54
Oil Supply Hold Thread NPT 3/8 3/8
Saddle Protrusion from Plgr (mm) 12 12
