Description

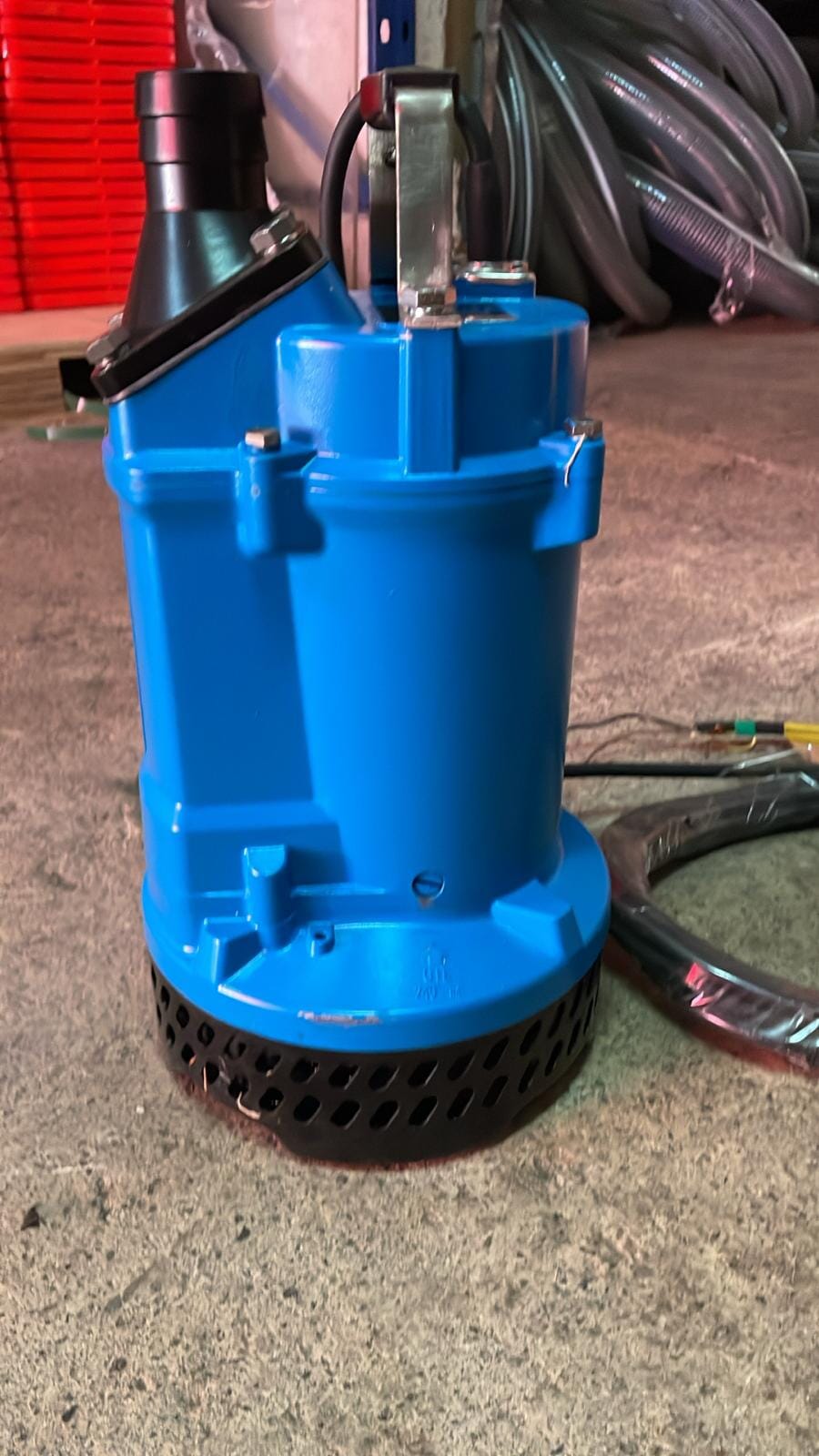

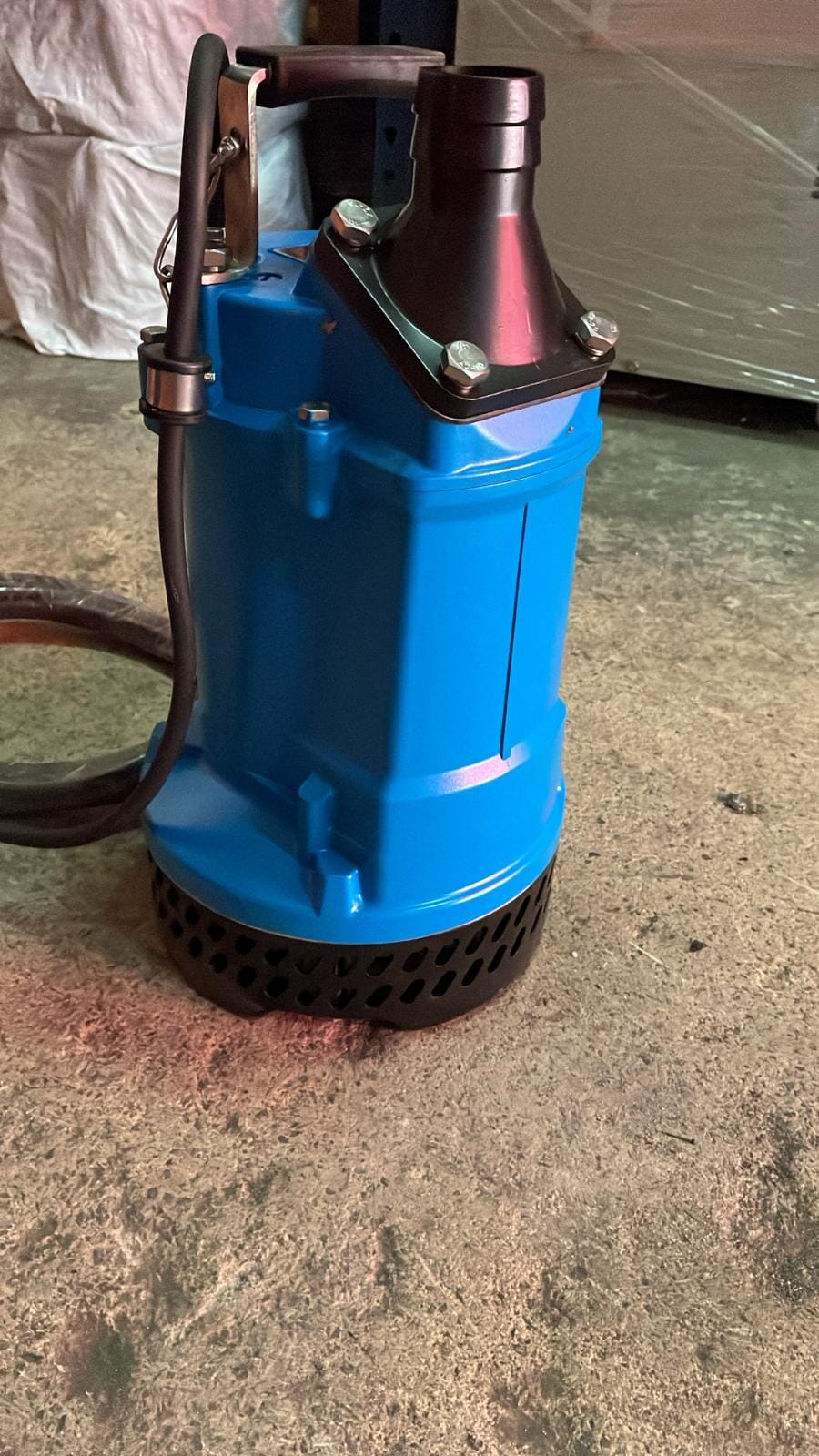

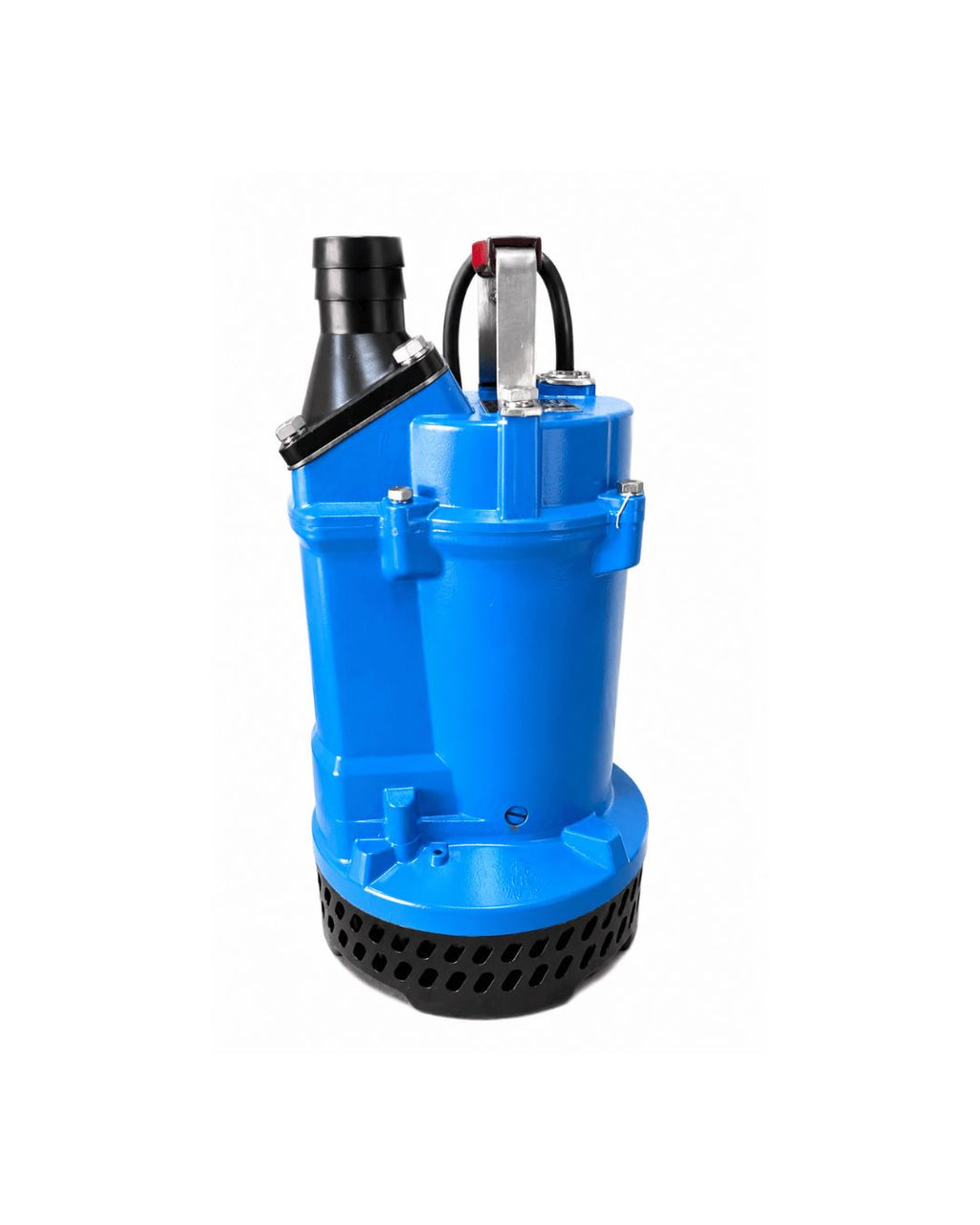

Aiko 2" 3HP 2.2KW 415V 50HZ KBV Submersible Drainage Pump #KBV22.2 | Model: KBV22.2
Compact design provides maximum motor cooling efficiency allowing continous operation at low water levels and extended dry-run capabiliti. The discharge direction is selectable between vertical and inclined, which prevents folding or bending ythe discharge hose.
Application: Civil engineering, building sites, basements or other utility pits, rainwater and mud water.
Specifications:
| Model | KBV22.2 |
| Water Temperature | Up to 40°C |
| PH | 6.5 to 8.5 |
| Power Supply | three phase 380V ± 10%, 50Hz, 60Hz |
| Insulation Class | F |
| Protection Class | IP68 |
| Cable Length | 8m |
| Max Water Depth | 25m |
| Outlet | 50mm |
| Motor Power | 2.2kW, 3HP |
| Voltage | 380V |
| Rated Current | 4.8A |
| Rated Capacity | 0.2m³/min |
| Rated head | 20m |
| Max. Capacity | 0.45m³/min |
| Max. Head | 25/27m |
| Impeller Passage | 8.5mm |
