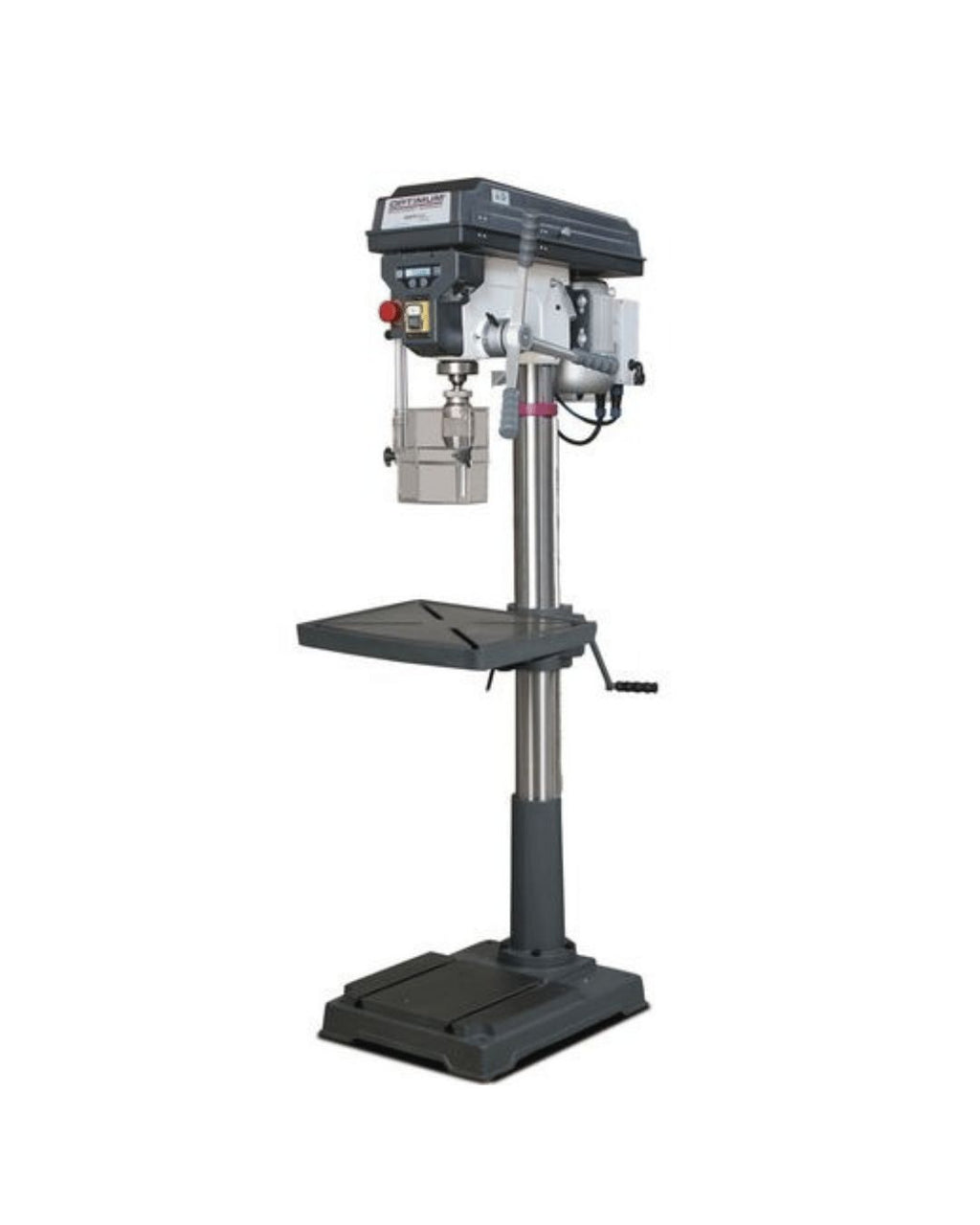

Optimum Bench Drill 415V (D33PRO) Germany | Model: D33PRO

OptimumSKU: D33PRO

Price:
Sale price$1,187.00

Tax included Shipping calculated at checkout

Description

Optimum Bench Drill 415V (D33PRO) Germany | Model: D33PRO

Features:

  • Industrial engine
  • Easy to use safety switch according to IP 54
  • Digital drilling depth and speed indicator integrated in the housing
  • Separate emergency stop impact switch
  • Precision Spindle bore
  • Safety electronics in 24 V DC
  • Guaranteed concentricity measured less than 0.02 mm in the drill quill
  • Drill spindle with precision ball bearings
  • High quality keyless chuck
  • Digital depth gauge
  • Precision machined, stable drill table with diagonal T-slots and circumferential cooling water channel
  • V-belt cover with safety switch
  • One piece cast aluminum die-cast quill lever with softgrip handles
  • Large, height-adjustable protective screen with safety switch
  • Heavy version of the entire machine

Specifications:

Dimensions and weights
Column diameter 92 mm
Length approx. 915 mm
Width/depth approx. 450 mm
Height approx. 1705 mm
Weight approx. 137 kg

Drilling performance

Drilling performance steel (S235JR) 30 mm
Continuous drilling performance steel (S235JR) 25 mm

Drilling table

Workspace length 475 mm
Workspace width 425 mm
T-groove size 14 mm
Rotation 360 °
Angle 45 °
Max. distance spindle - drilling table 695 mm

Electrical Data

Drive motor output 1,1 kW
Supply voltage 400 V
Mains frequency 50 Hz

Machine base

Max. distance spindle - machine base 1180 mm
Work area length 410 mm
Work area width 325 mm
Machine base T-groove size 16 mm
Machine base T-groove number 2
Machine base T-groove spacing 250 mm

Speed range

Speed range 120 1810 min¯¹
Number of gears 9 Stufen

Spindle

Quill stroke 120 mm
Spindle chuck MT 4
Reach 254 mm
VPE
1
