Description

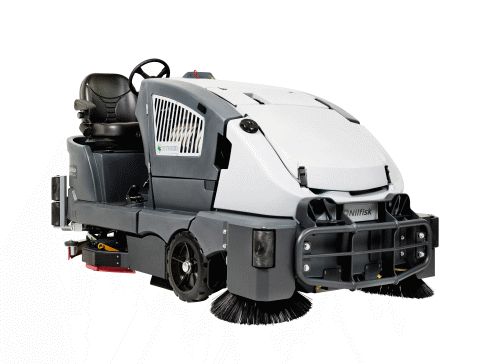

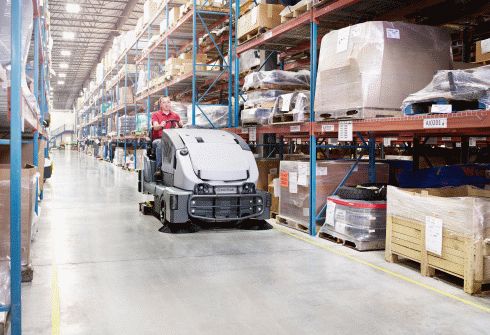

Nilfisk CS7010 Combination Scrubber | Model: CS7010
CS7010 reinvents an entire class of equipment by reducing total cost of ownership, including operation, labor and maintenance, while effectively increasing fuel economy and runtime efficiency. Now the most economical solution is also the most ecological.
Features:
- ClearView sightlines and automatic speed reduction in turns for safer operation
- High impact-absorbing polymer body panels won’t dent, corrode or damage facility
- Hybrid Drive backup battery power adds user convenience to drive to refueling station
- High-capacity 198 liter front dry sweeper debris hopper with high-lift system
- High performance Donaldson PowerCore® nanofiber filter with variable-frequency shaker
- Heavy-gauge industrial steel unibody frame
- Available with patented DustGuard™ airborne dust suppression technology
- Standard dual side brooms sweep entire squeegee path to minimize fouling
- Seat-accessible hopper safety prop rod
- Optional dual-tank EcoFlex™ System provides the most flexible cleaning
solution for industrial applications - Tools-free tilt-out/lift-off recovery tank
- High-capacity 285 liter corrosion-proof solution and recovery tanks
- Powerful dual vacuum motors deliver high waterlift and airflow to ensure a safe, dry floor
- SmartFlow™ technology decreases water and chemical usage
- Patented breakaway squeegee mechanism with tools-free servicing
- Disc scrub deck with integrated, powerful edge cleaning capability
- Brushes, brooms and squeegee can be replaced without tools
- Electronically-controlled electric drives are IP55 rated for easy cleaning and
reliable operation
Specifications:
| Model | CS7010 Battery |
| Configuration |
*Independent front dry sweeping w/dust control and rear scrubbing functions *Electronically controlled electric drives for all sweeping and scrubbing functions *Electrically driven hydraulic power unit for hopper raise/lower functions |
| Sweeping System | |
| Sweeping path w/dual side brooms | 154 cm – Squeegee path width is fully swept |
| Main broom | 90 cm x 31 cm |
| Sweeping coverage rate per hour | 13,600 m2 |
| Dust control system | 10,7 m2 Donaldson high-capacity PowerCore® UltraWeb® filter w/synthetic media. Variable frequency automatic filter shaker |
| Hopper drum height (Max.) | 152cm |
| Hopper capacity | 198 liter 136 kg |
| DustGuard™ Tank Capacity(1) | 110 liter |
| Scrubbing and Recovery Systems | |
| Scrubbing path and brushes | 165 cm – 3 x 43 cm disc |
| Scrubbing coverage rate per hour | 11,000 m2 |
| Scrub pressure | Three scrub pressure settings up to 182 kg of down force at maximum setting |
| Recovery/ solution tank capacity | 285 liter each |
| Recover vacuum | Dual vac fan motors capable of 165 cm waterlift |
| Power and Propulsion Systems | |
| Propulsion system | Battery:36 V/770 Ah |
| System napedu | Variable speed brushless A/C drive |
| Propel speed(Variable) Trasnport Sweeping/Scrubbing |
8,9 km/h 5,6 km/h w/override capability |
| Operational run time Sweeping/Scrubbing(2) | 5.4 hrs. w/770 Ah battery |
| Gradeability Trasnport@ Gross weight Sweeping/Sweeping |
21% (12 deg.) 17.6% (10 deg.) |
| Dimensions/ Weight/ Sound/ Environmental | |
| Length | 262cm |
| Width | 165cm |
| Height | 150cm |
| Minimum Aisle turn | 264cm |
| Weigh: GVW Empty |
2,593 kg 2,124 kg |
| Sound level (IEC60335-2-72) | 72dB(A) |
| Water ingression | All electric |
| Specifications are subject to change without notice | All electric drive motors and actuators rated IP55 for water washdown |
| (¹) DustGuard™ optional (²) Measured run time using low scrubbing and sweeping mode at normal operating speeds on smooth floors (actual results will be application dependent) (³) Meets EPA emission standards under 40 CFR 1039.625 CS7010 models shown in photos may feature optional accessories |
