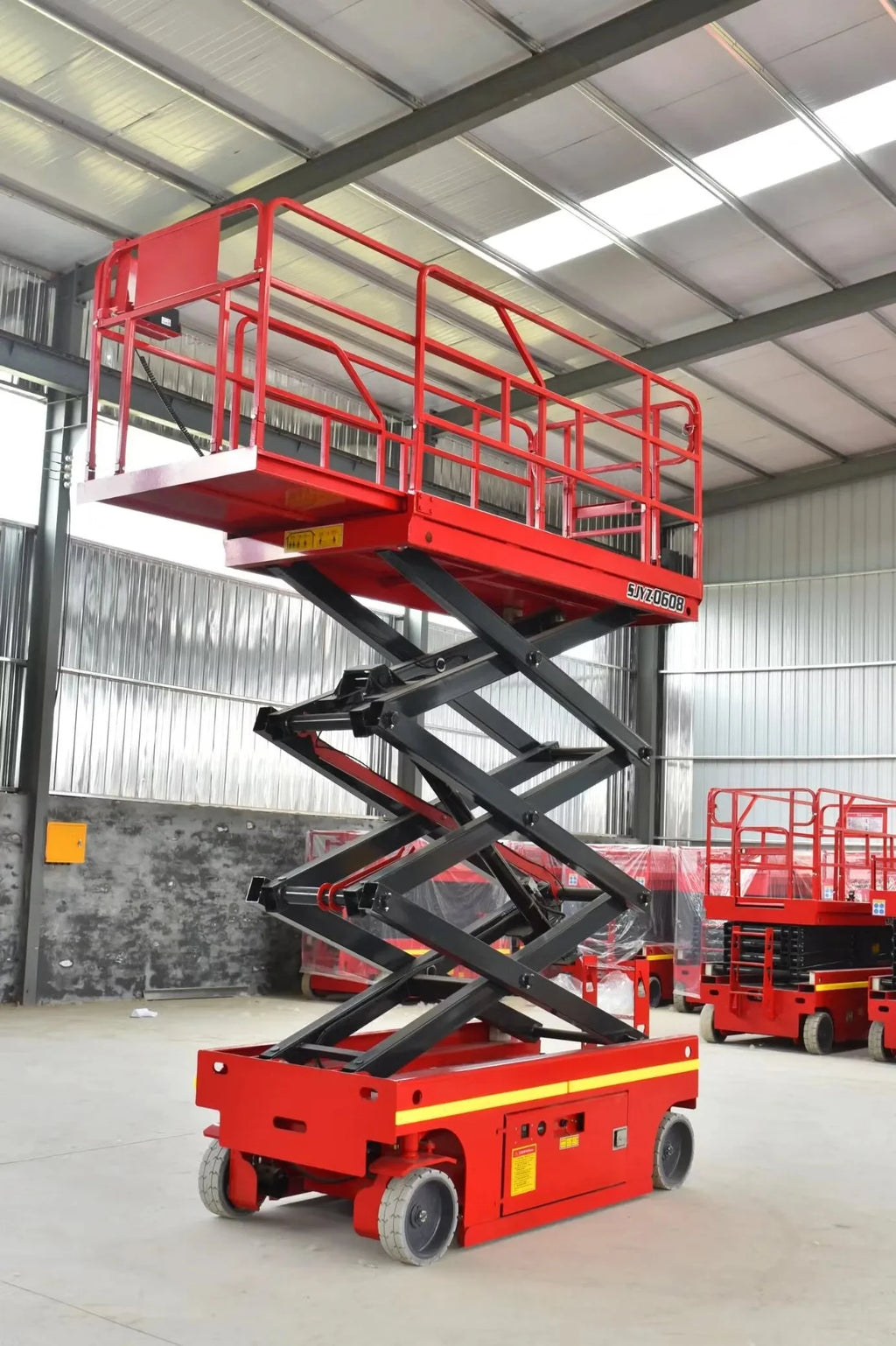

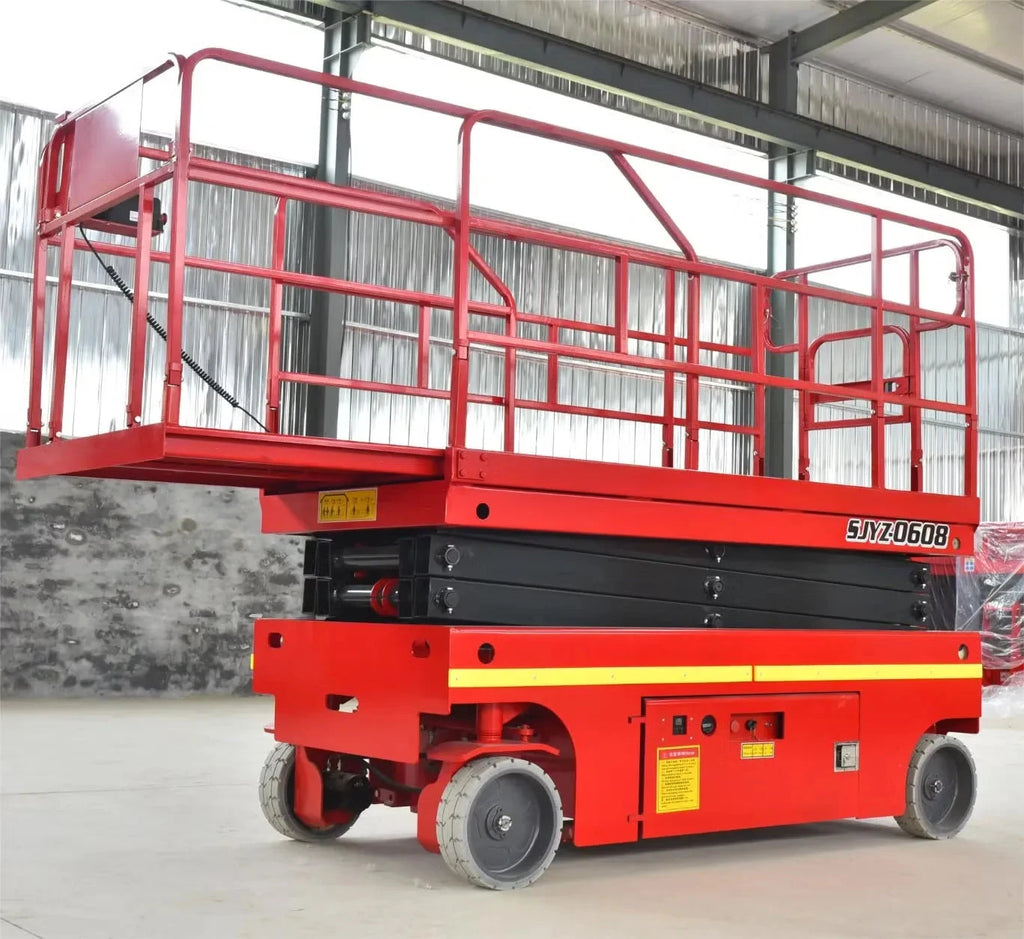

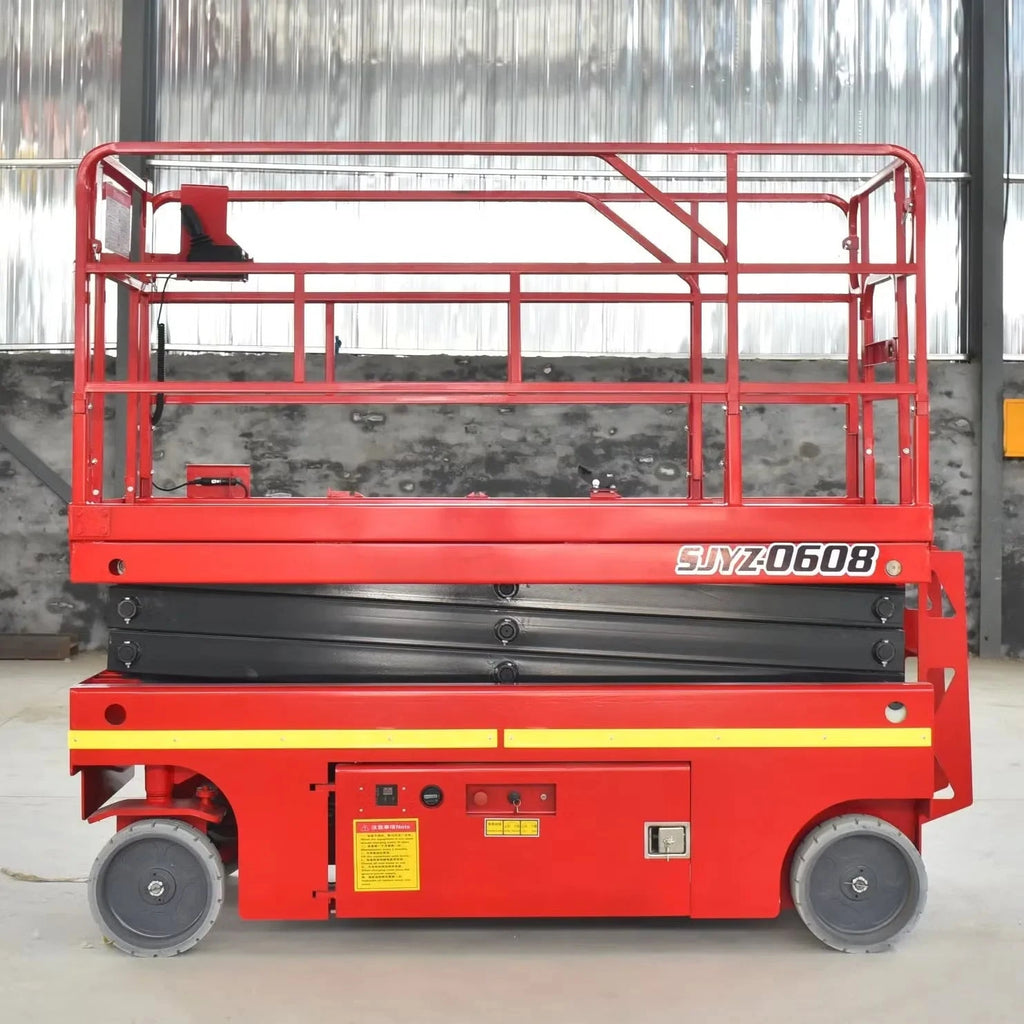

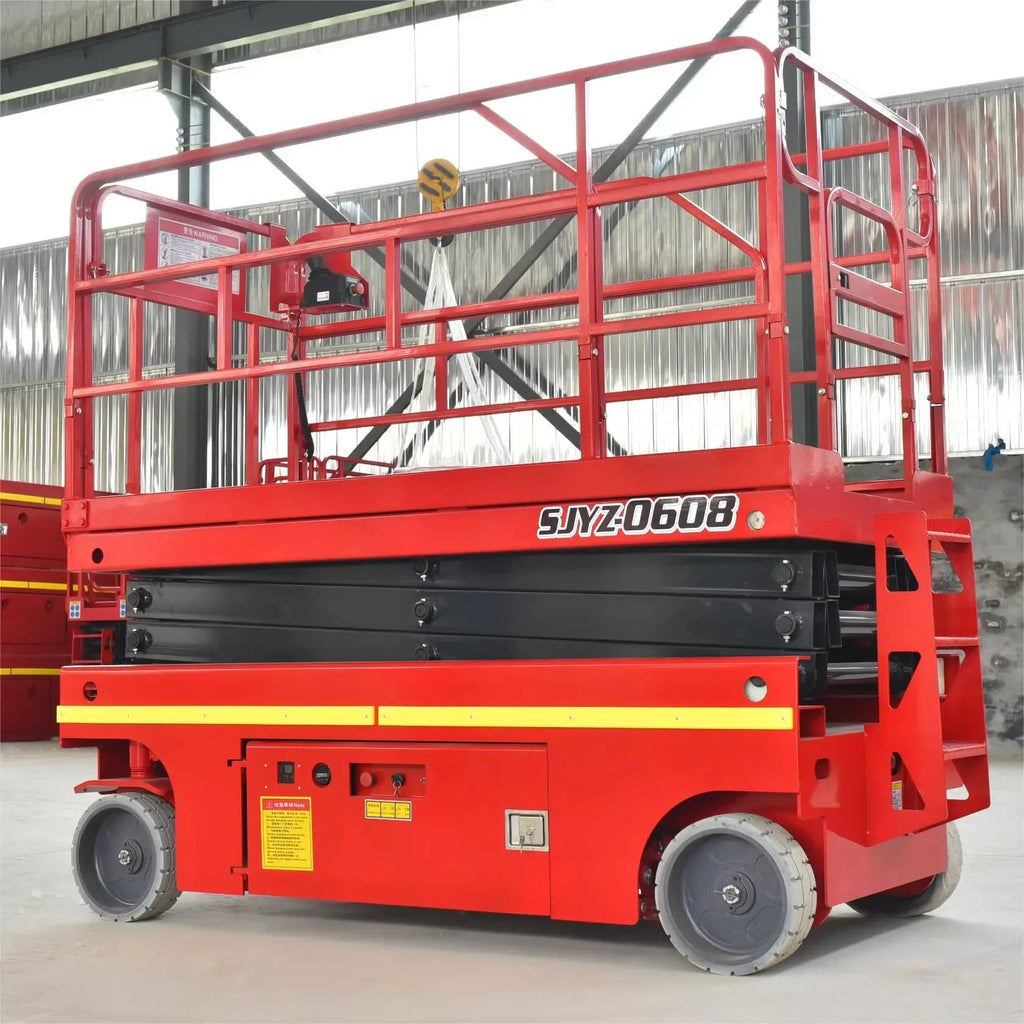

Scissor Lift with Platform Stand Height 6m DC #SJYZ0608 Working Height 8M | Model: PT-SJYZ0608
This hydraulic lifting platform is designed with a compact structure, flexible movement, simple operation, high load capacity, smooth lifting, and reliable safety performance.
Features:
-
Proportional control
-
Automatic braking system
-
Extension platform
-
Automatic pothole protection system
-
Emergency lowering system
-
Emergency stop button
-
Platform self-locking gate
-
Charging protection system
-
Hour meter
-
Flashing beacon
-
Full-stroke travel
-
Hydraulic hose burst protection
-
Maintenance support bar
-
Non-marking tyres
-
Fault diagnosis system
-
Forklift pockets for transport
-
Hydraulic drive
-
Tilt protection system
- Foldable guardrails
Specifications:
| Model | SJYZ0608 |
| Safe Working Load | 300kg |
| Extension Platform Load | 100kg |
| Max. Occupants | 2 persons |
| Max. Working Height | 8m |
| Max. Platform Height | 6m |
| Overall Length | 1900mm |
| Overall Width | 780mm |
| Overall Height (Rails Unfolded) | 2180mm |
| Overall Height (Rail Folded) | 1910mm |
| Platform Size (LxW) | 1750x740mm |
| Platform Extension | 0.55m |
| Ground Clearance (Stowed) | 0.1m |
| Ground Clearance (Raised) | 0.083-0.016m |
| Turning Radius (Inside Wheel) | 0 |
| Turning Radius (Outside Wheel) | 1.64m |
| Lift/ Drive Motor | 24v/ 3.0kW |
| Travel Speed (Stowed) | 3.5km/h |
| Travel Speed (Raised) | 0.8km/h |
| Lift/ Lower Time | 4-6minutes |
| Battery | Maintenance-free 12V/ 120Ah x 2 |
| Charger | 24V/ 16A |
| Gradeability | 25% |
| Max. Working Angle (Indoor/ Outdoor) | 1.5°/ 3° |
| Tyre Size | Φ305 X 115 |
| Machine Weight | 1350kg |
Construction & Materials:
-
Safety guardrails: 35 × 35 mm square tube
-
Platform: Anti-slip checkered plate
-
Scissor arms: Q345 manganese steel
-
Base frame: Welded steel plate
-
Hydraulic oil: N46 anti-wear hydraulic oil
-
Control system: Integrated electric control system
-
Finish: Electro-coating primer and powder coating
-
Colour: Red body with dark grey scissor arms
