Toptech 230V Mini Lathe 50HZ 1PH | Model : TURNER-250F

Save $190.20
OptimumSKU: TURNER-250F

Price:
Sale price$1,900.80 Regular price$2,091.00

Tax included Shipping calculated at checkout

Description

Toptech 230V Mini Lathe 50HZ 1PH | Model : TURNER-250F

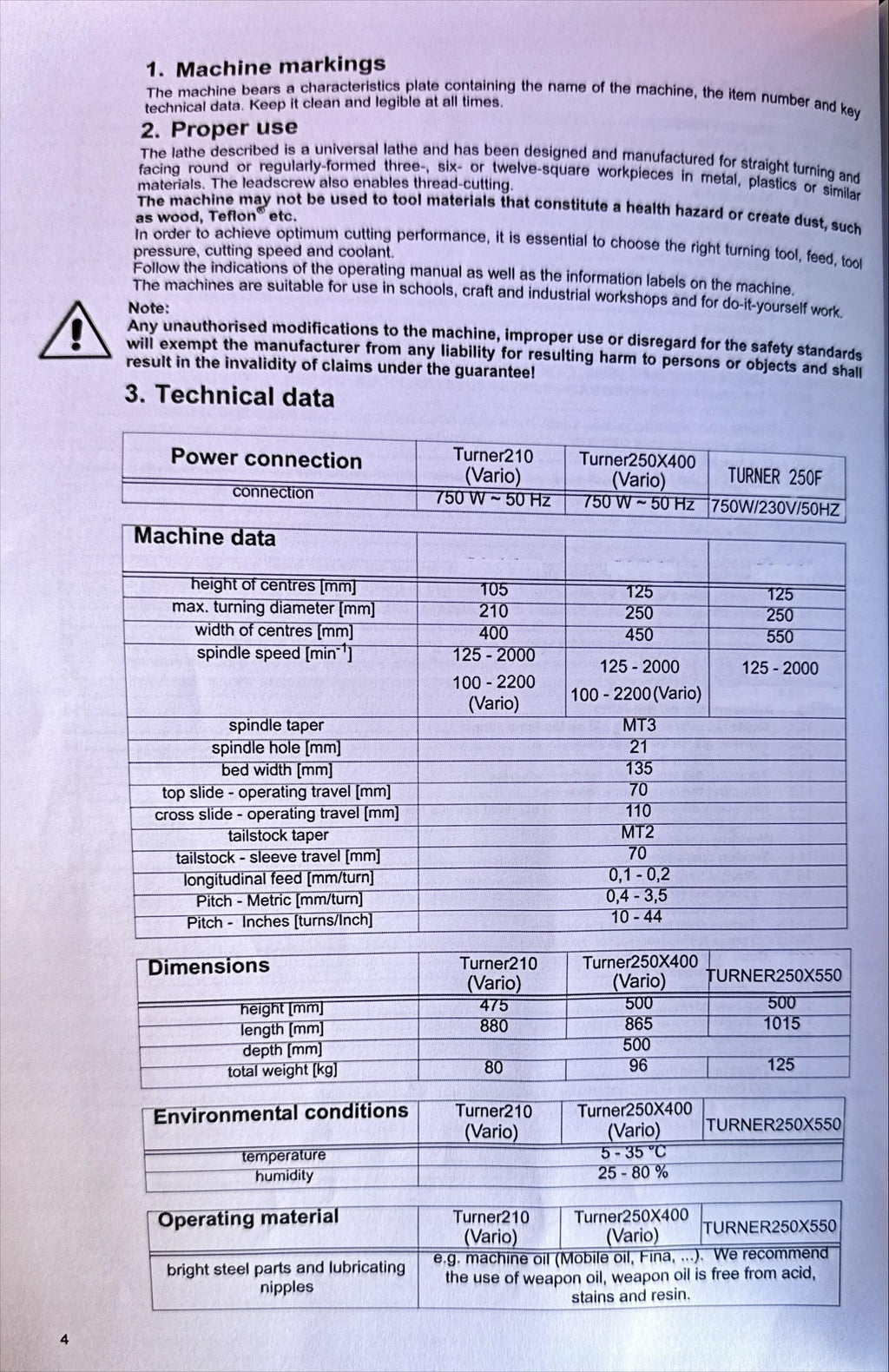

Specifications :

  • Capacity :
    • Swing over bed : 250mm (diameter)
    • Swing over cross slide : 150mm (diameter)
    • Admits between : 550mm
    • Center height : 125mm
    • Width of bed : 135mm
  • Headstock :
    • Spindle dore : 21mm (diameter)
    • Taper of spindle bore : MT3
    • Range of spindle speed : 125 - 2000 rpm
  • Feeds and threads :
    • Top slide travel : 75mm
    • Cross slide travel : 120mm
    • Max. section of tool : 12 x 12mm
    • Threads metric pitches : 0.4 - 3.5mm
    • Threads imperial pitches : 8 - 44 TPI
  • Quill :
    • Quill diameter : 30mm (diameter)
    • Quill travel : 70mm
    • Quill taper : MT2
    • Cross adjustment : +-5mm
  • Motor Power : 750W
  • Overall Dimension (L x W x H) : 1110 x 500 x 500 mm
  • Net Weight : 127kg
  • Gross Weight : 145kg
