Description

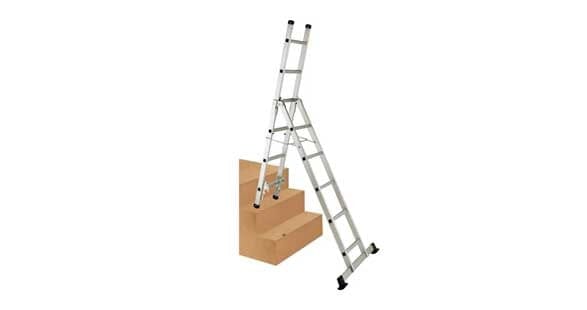

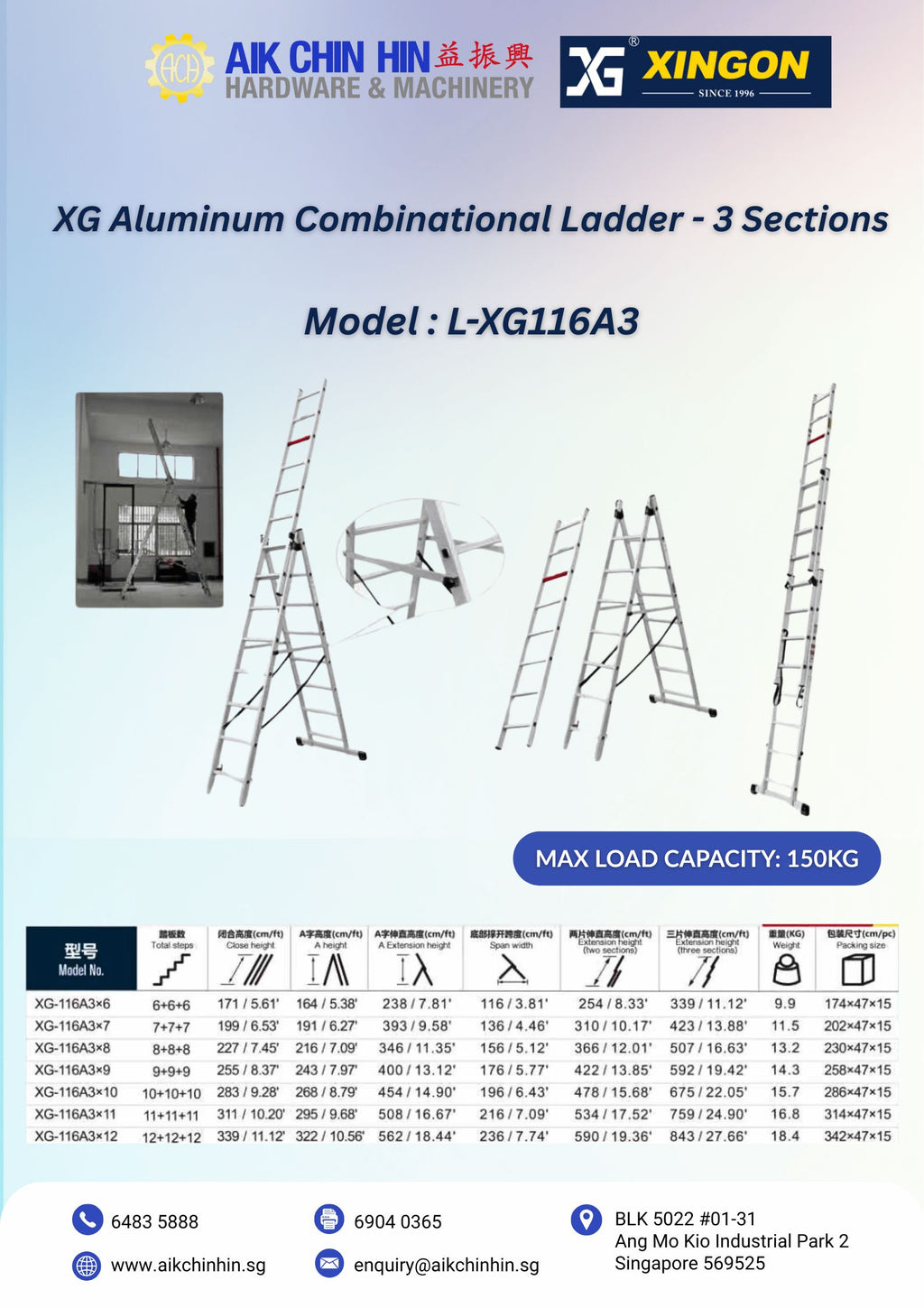

XG Aluminum Combinational Ladder - 3 Sections | Model : L-XG116A3
Features :
- 6 different functions
 - Using as single straight ladder
 - Heavy gauge steel bracket engages steel pin to lock section in step ladder position
 - Bigger base bar
 - PP + TPO slip - resistant foot
 - Swaged connection
 - No Warranty

Specifications :
- Model : XG-116A3X6
 - Total Steps : 6+6+6
 - Max Capacity : 150 kg
 - Step Space : 28 cm
 - Close Height : 171cm / 5.61' ft
 - A height : 164cm / 5.38' ft
 - A Extension height : 238cm / 7.8' ft
 - Span With : 116cm / 3.8' ft
 - Extension Height (Two sections) : 254 cm / 8.33' ft
 - Extension Height (Three sections) : 339 cm / 11.12' ft
 - Weight : 9.9 kg
 - Model : XG-116A3X7
 - Total Steps : 7+7+7
 - Max Capacity : 150 kg
 - Step Space : 28 cm
 - Close Height : 199cm / 6.52' ft
 - A height : 191cm / 6.26' ft
 - A Extension height : 292cm / 9.58' ft
 - Span With : 136cm / 4.46' ft
 - Extension Height (Two sections) : 310 cm / 10.17' ft
 - Extension Height (Three sections) : 423 cm / 13.87' ft
 - Weight : 11.6 kg
 - Model : XG-116A3X8
 - Total Steps : 8+8+8
 - Max Capacity : 150 kg
 - Step Space : 28 cm
 - Close Height : 227cm / 7.44' ft
 - A height : 216cm / 7.08' ft
 - A Extension height : 346cm / 11.35' ft
 - Span With : 156cm / 5.11' ft
 - Extension Height (Two sections) : 366 cm / 12.0' ft
 - Extension Height (Three sections) : 507 cm / 16.63' ft
 - Weight : 13.1 kg
 - Model : XG-116A3X10
 - Total Steps : 10+10+10
 - Max Capacity : 150 kg
 - Step Space : 28 cm
 - Close Height : 283cm / 9.28' ft
 - A height : 268cm / 8.79 ft
 - A Extension height : 454cm / 14.89' ft
 - Span With : 196cm / 6.43' ft
 - Extension Height (Two sections) : 478 cm / 15.68' ft
 - Extension Height (Three sections) : 676 cm / 22.17' ft
 - Weight : 15.7 kg

*There might be minor defects on the ladder during delivery but quality is not affected.
Please take note for ladder, we will have redelivery charge of $50/unit in case of exchange
You must factor in the platform height and working height you need, and check if the ladder can fit into your lift and storage
