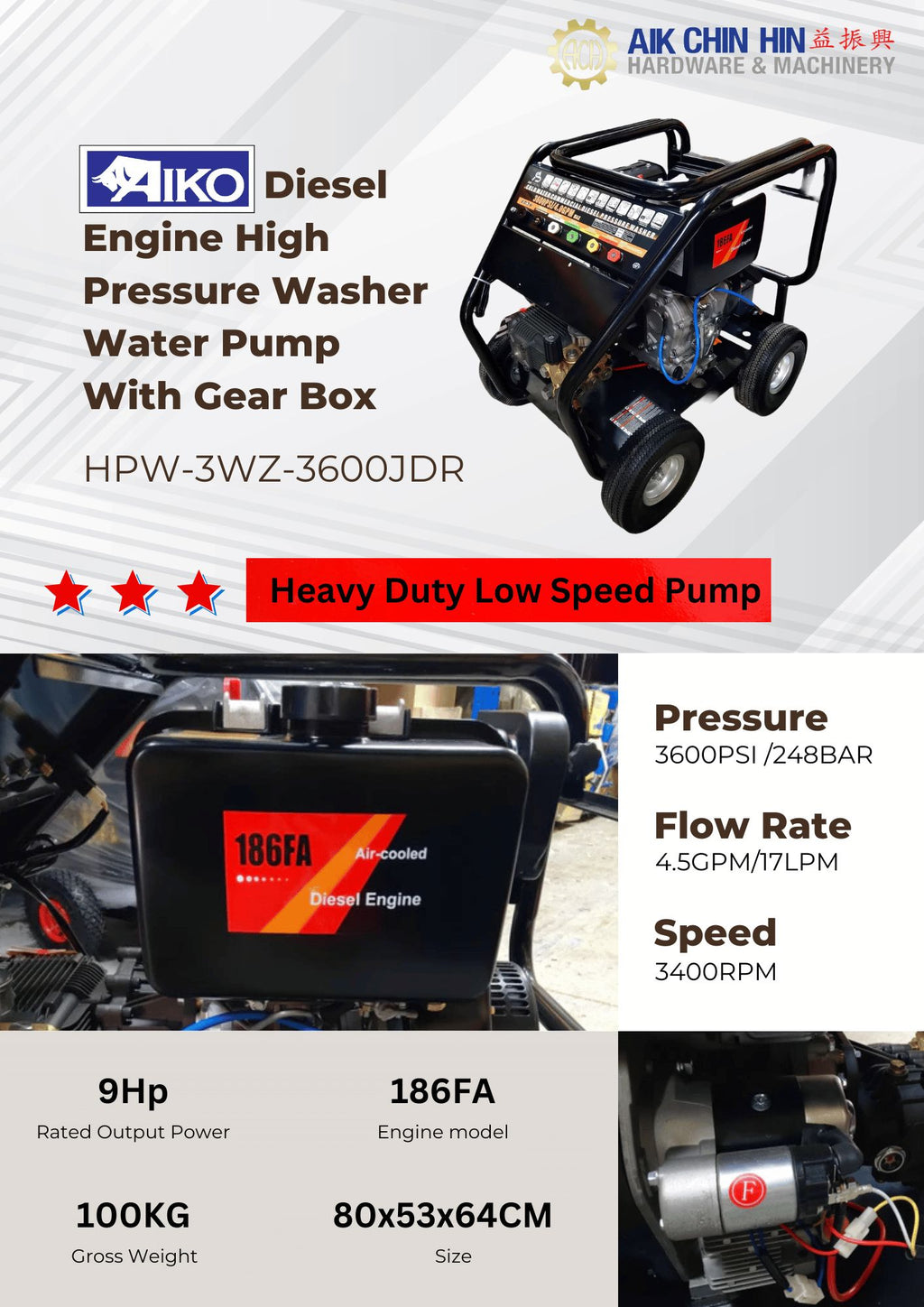

Aiko 3WZ-3600JDR 200 Bars Diesel Pressure Washer Water Pump With Gear Box 3WZ-3600JDR | Model: HPW-3WZ-3600JDR

Save $298.55
AikoSKU: HPW-3WZ-3600JDR

Price:
Sale price$1,858.45 Regular price$2,157.00

Tax included Shipping calculated at checkout

Description

Aiko 3WZ-3600JDR 200 Bars Diesel Pressure Washer Water Pump With Gear Box 3WZ-3600JDR | Model: HPW-3WZ-3600JDR

Specifications:

Performance:

  • Max working pressure (Head Pressure): 3600PSI/248BAR(+/-6%)
  • Flow rate (Pump full capacity): 4.5GPM/17LPM(+/-6%)

Diesel Engine:

  • Engine Model: 186FE
  • Engine Type: Single vertical cylinder, 4-stroke, air-cooled, direct injection
  • rated Output Power: 9HP
  • Displacement: 406cc
  • Revolution: Load 3250Rpm, no load 3400RPM
  • Starting System: Recoil manual start and electril start
  • Fuel Tank Capacity: 5.5L
  • Fuel Consumption: 2.15-2.55L/H
  • Lubrication Oil Capacity: 1.65L
  • Lubrication Oil Type: SAE10W30

Battery:

  • Battery: 12V 20AH

Triplex Pump:

  • Pump Model: 3Wz-1807A(3WZ-1510A)
  • Pump Type: Heavy-duty grade, direct drive, brass forged manifold triplex pump
  • Unloader System: Inner bypassing bolt on unloader with easy start system and loose proof knob
  • Safety devices: Thermal relief protection
  • Plunger Sealing system: Germany Parker U type sealing set solution
  • Lubrication Oil Capacity: 560ML9430ML)
  • Lubrication Oil Type: SAE10W30

Water supply:

  • Max. Feed Temperature: 45°C
  • Min. Feed Volume: 5 gallons per minute @20 psi

Dimension and weight:

  • Unit Net Weight: 90KG
  • Shipping Weight: 100KG
  • Shipping Dimension: 80x53x64cm
